welded wire mesh panel for concrete building / reinforced mesh

FOB Reference Price:Get Latest Price
$9.00 - $99.00 / Rolls | 10 Roll/Rolls (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
HBMS
Model Number:
welded mesh
Material:
galvanized, pvc coated, stainless steel, Low-Carbon Iron Wire, low carbon wire, galvanized, PVC coated, Stainless steel
Type:
Welded Mesh
Application:
Fence Mesh
Hole Shape:
Square
Wire Gauge:
1.0mm-10.0mm
Wire diameter:
1.0mm-10.0mm
Hole size:
1/2"-6"
Width:
0.3m-2.5m
Roll Length:
15.24m,30m,50m
Certificate:
ISO9001:2000
Aperture:
1/2"-6"
Supply Ability
Supply Ability:
1000 Roll/Rolls per Day
Packaging & Delivery
Packaging Details
1. In rolls,plastic bags or waterproof papers
2. Square wire mesh panels,packed into plastic bags and pallets.
Port
xingang
Lead Time :
20-25 days
Our company
Hebei Maishi Wire Mesh Group supply Galvanized Welded Wire Mesh, Stainless Steel Welded Wire Mesh and PVC Welded Wire Mesh with high quanlity,favorable price and excellent service.

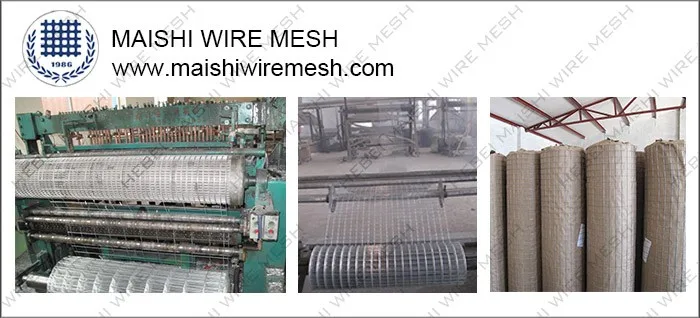

Our automatic welding machines can set up any mesh sizes in the market, no matter it's standard type or special requirement;
The fully digital controlled techniques and well-trained staff can ensure the even mesh size and the accurate dimensions of panels.

Product details
Product Name
welded wire mesh panel for concrete building
Material
low carbon wire, galvanized wire, stainless steel wire.
Finish
electric galvanized, hot dipped galvanized, PVC coated
Wire diameter
1.0mm-10.0mm
Hole Size
1/2" - 6"
Width
0.3m-2.5m
Length
15.24m,30m,50m
Package
1. In rolls,plastic bags or waterproof papers
2. Square wire mesh panels,packed into plastic bags and pallets.
Certificate
ISO9001:2000

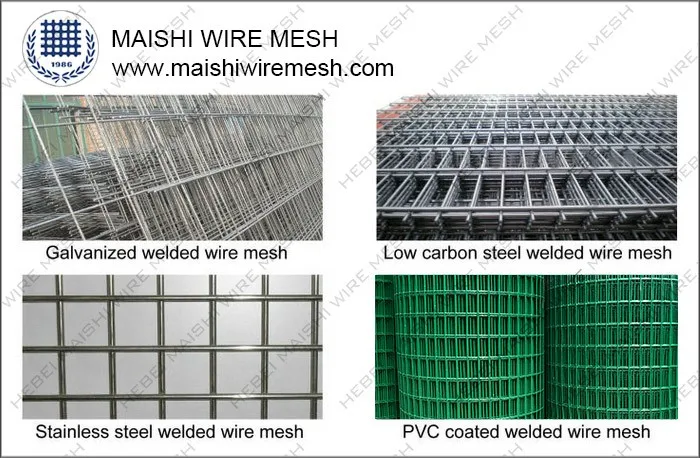

Product material

Material:

1. Galvanized wire
2. Low carbon steel wire
3. Stainless steel wire
Finish
1. Electric galvanized
2. Hot dipped galvaznied
3. PVC coated
4. Iron/galvanized wire+pvc coated


[Electro galvanized]

1.Weight of zinc : 10-15 g/m².
2. Uniform coating and thin thickness. Coating are usually only 3-15 microns with bright appearance.

[Hot-dipped galvanized]

1.Weight of zinc: normal 60-80g/m², High:80-120g/m².

2. Coating are usually 45-300 microns with darker color and good corrosion resistance.

   Hot-dipped galvanized, coated thickness and nonuniform coating.

Details
Specification
Opening
Wire diameter
Width
1/4 x 1/4
0.5mm-0.7mm
300mm-1828mm
3/4 x 3/4
0.7mm-2.0mm
300mm-1828mm
3/8 x 3/8
0.7mm-1.1mm
300mm-1828mm
5/8 x 5/8
0.8mm-1.2mm
300mm-1828mm
1/2 x 1/2
0.45mm-1.6 mm
300mm-1828mm
1 x 1
0.7mm-3.0mm
300mm-2000mm
1 x 1/2
0.8mm-1.6mm
300mm-1828mm
1-1/2 x 1-1/2
0.7mm-3.5mm
300mm-1828mm
1 x 2
1.6mm-2.1mm
300mm-1828mm
2 x 2
0.7mm-4.0mm
300mm-2500mm
2 x 3
1.5mm-3.5mm
300mm-2000mm
2 x 4
2.0mm-4.0mm
300mm-1828mm
3 x 3
1.0mm-4.5mm
300mm-2500mm
3 x 4
1.5mm-4.5mm
300mm-2000mm
4 x 4
1.0mm-4.5mm
300mm-2500mm
5 x 5
2.5mm-4.5mm
300mm-2500mm
6 x 6
2.5mm-4.5mm
300mm-2500mm
Technical Note:
1. Standard roll length: 15.24m,30m,50m. 2. Special sizes available at request.
3. Packing: in waterproof paper in rolls. Custom packing available at request.
Panle Welded Wire Mesh
Mesh Size
Wire diameter
In Inch
In MM
MM
1/2 x 1/2
12.7mm
1.0mm-2.0 mm
1 x 1
25.4mm
1.5mm-3.5mm
1 1/4
31.8mm
2.0mm-4.0mm
1 1/2
38.1mm
2.0mm-5.0mm
2 x 2
2 x 2
50.8mm
2.0mm-6.0mm
3 x 3
76.2mm
3.0mm-7.0mm
4 x 4
101.6mm
3.0mm-8.0mm
5 x 5
127.0mm
4.0mm-9.0mm
6 x 6
152.4mm
4.0mm-10.0mm
Panel Width & Length: 3Feet × 6Feet, 4Feet × 8Feet, 5Feet × 106Feet, 1M ×2M, 1.5M × 3M, 2M × 4M
Other panel sizes can also be made according to request.
Package
Usage

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
1.Guarding
2.Railings
3.Architectural
4. Ceiling Tiles
5.Partition Systems
6. Farm


6 x 6mm hole - Mouse protection
13 x 13mm hole - Fruit cages, bird protection, engineering uses
13 x 25mm hole - Bird protection, enclosures for small animals
20 x 20mm hole - Rat and squirrel protection
25 x 25mm hole - Fox protection, cat and dog enclosures
50 x 50mm hole - Fox protection, dog enclosures

Contact

Q:Can we get samples before buying?
A:Yes, we're pleased to offer you samples for your testing freely2m each sizes.
Maishi trust our quality can be satisfied



Q: How can you guarantee for quality and delivery time?
A: For delivery time, we usually have stocks from 500-10000m for common size. So, we can ship the goods in time to our customers.

We can guarantee our customers if the mesh has problems, they can return back to us; We'll ship replacement mesh free cost with next orders.

1) Export
We have more than 29 years of export experience.
we have exported to more than 90 countries and 95% repeat orders.

2)Technology
The machinery and apparatus used in production process fully based on the highcomputer technology.
So it is accepted as the only company capable of having TSE (Chinese Standard Institution ) certificate.

3) our services
1.We can customize products according to your requirements.
2. Including design and drawing.
3. Choose the cheapest and safest shipping company.
4. Track the order until you get the goods.
5. Please feel free to contact us.

4) Guarantee
1.We guarantee our customers will get right material and sizes,enough weight,on time delivery at our best service and price.
2.Shortest delivery time as we have 200-500rolls for stocks(normal size).
3.The goods can be returned or compensated if the quality is not ok.
4.There is no "cheat" and "misunderstanding" in Maishi
