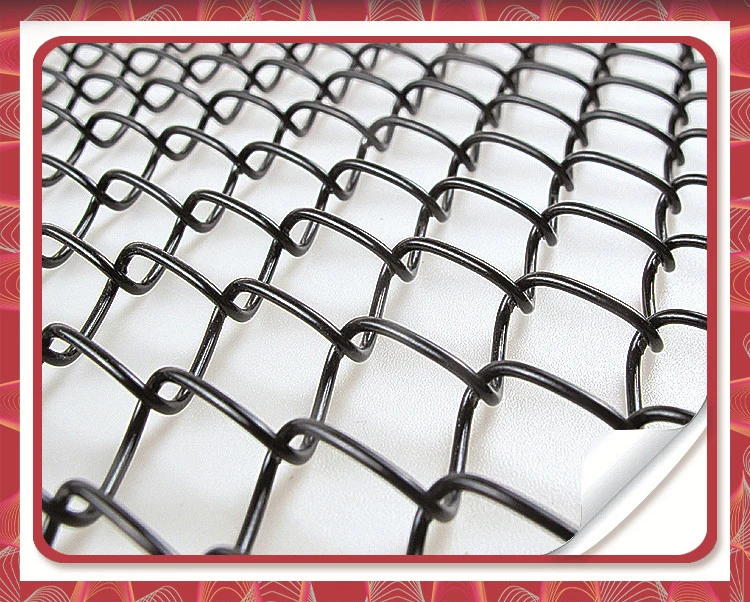

BLACK UV treated PVC coated chain Link fence mesh

FOB Reference Price:Get Latest Price
US $10-100 / Square Meters | 500 Square Meter/Square Meters accord to customer's request (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MAISHI
Model Number:
SF
Material:
stainless steel wire,black iron wire,galvanized,pvc coated iron wire,, Galvanized Iron Wire, black iron wire,galvanized iron wire
Type:
Chain Link Mesh
Application:
Fence Mesh
Hole Shape:
Diamond
Aperture:
25mm-76mm, 25-76mm
Wire Gauge:
1.6-2.8mm
Product name:
BLACK UV treated PVC coated chain Link fence mesh
Wire diameter:
1.6-4.2mm
Price:
reasonable and competitive
Width:
1.5m, 1.8m, 2.14m etc
SupplyAbility
SupplyAbility:
100000 Square Meter/Square Meters per Week accord to customer's request
Packaging & Delivery
Packaging Details
standard sea freight export packaging
Port
XINGANG
Lead Time :
According to order quantity

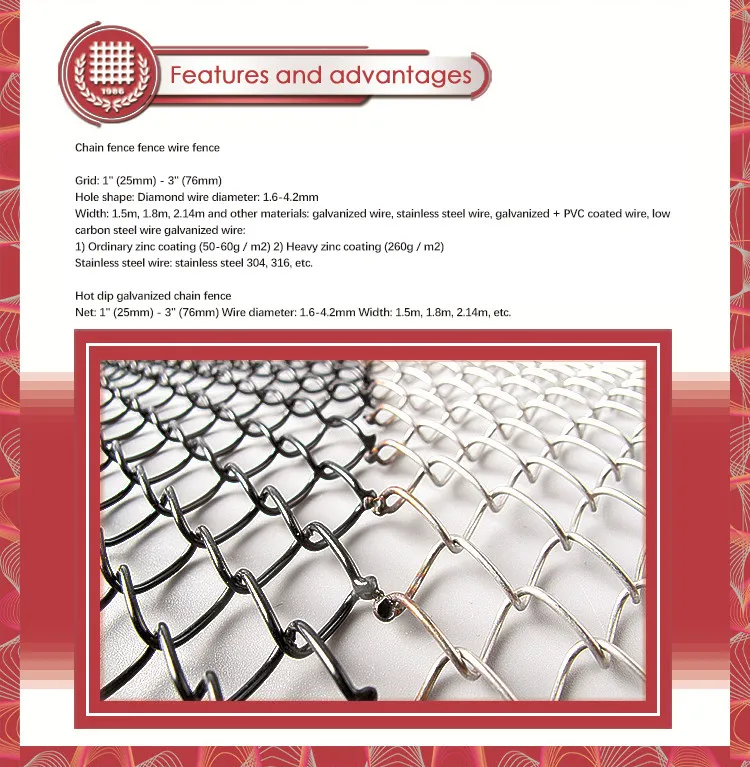

BLACK UV treated PVC coated chain Link fence mesh
Mesh:1"(25mm) - 3"(76mm)
Wire Dia: 1.6-4.2mm
Width: 1.5m, 1.8m, 2.14m etc




[ Inner Wire Material ]

1. Black wire: just black wire, without any surface finish.

2. Electro galvanzied, hot-dipped galvanzied

Two standard zinc coating for hot-dipped galvanzied:

1) normal zinc coating(50-60g/m2)

2) heavy zinc coating(260g/m2)

Tips:  Hot-dipped galvanized has better corrosion resistance than electro galvanized, because the thickness of zinc coating is thicker.



[ Outter Material ]

PVC:  Poly(vinyl chloride), commonly abbreviated PVC, is the third-most widely produced polymer, after polyethylene and polypropylene. It can protect the inner material from corrosion effectively.

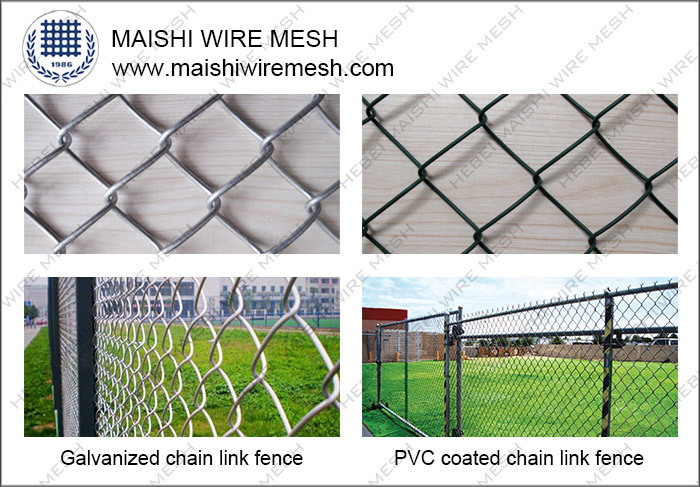

Galvanized and PVC coated chain link fence Main specificatin as follows:

Mesh

Hot Dipped

PVC Coated

Wire Dia. (mm)

Weight kg/m²

Wire Dia.

before/after

Weight kg/m²

1"

(25mm)

2.8

3.87

2.6/3.2

3.7

2.4

2.9

2.0/2.6

2.3

2.1

2.3

1.4/2.0

1.2

1.6

1.34

1.0/1.6

0.7

1.5"

(40mm)

3.4

3.7

3.4/4.0

3.9

3.0

3

2.6/3.2

2.4

2.8

2.4

2.0/2.6

1.4

2.1

1.4

1.4/2.0

0.8

2"

(50mm)

4.2

4.5

3.4/4.0

3.2

3.4

2.9

2.6/3.2

1.9

2.8

1.9

2.0/2.6

1.2

2.1

1.2

1.4/2.0

0.6

2.25"

(56mm)

4.2

3.9

3.4/4.0

2.8

3.4

2.6

2.6/3.2

1.7

2.8

1.7

2.0/2.6

1.0

2.1

1.0

1.4/2.0

0.55

2.4"

(60mm)

4.2

3.7

3.4/4.0

2.6

3.4

2.5

2.6/3.2

1.6

2.8

1.63

2.0/2.6

1.0

2.1

1.00

1.4/2.0

0.48

2.5"

(64mm)

4.2

3.5

3.4/4.0

2.5

3.4

2.3

2.6/3.2

1.5

2.8

1.6

2.0/2.6

0.9

2.1

0.9

/

/

3"

(76mm)

4.2

3.00

4.4/5.0

3.4

3.4

2.00

3.4/4.0

2.1

2.8

1.3

2.6/3.2

1.3

2.1

0.8

/

/

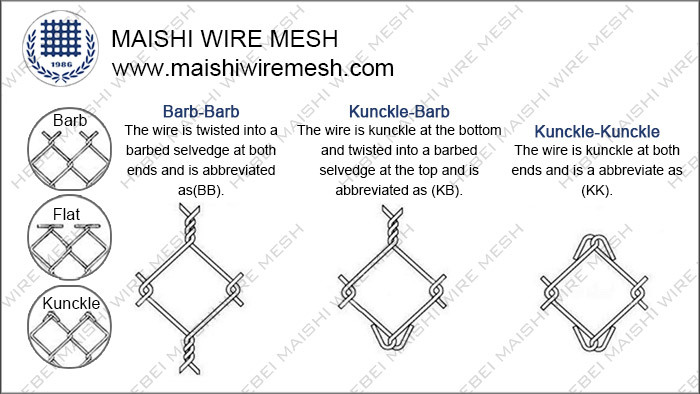

[ Edge ]

Selvage KxK: Knuckle x Knuckle

Selvage BxB(TxT): Barb x Barb(Twist x Twist)

Selvage KxB(KxT): Knuckle x Barb(Knuckle x Twist)

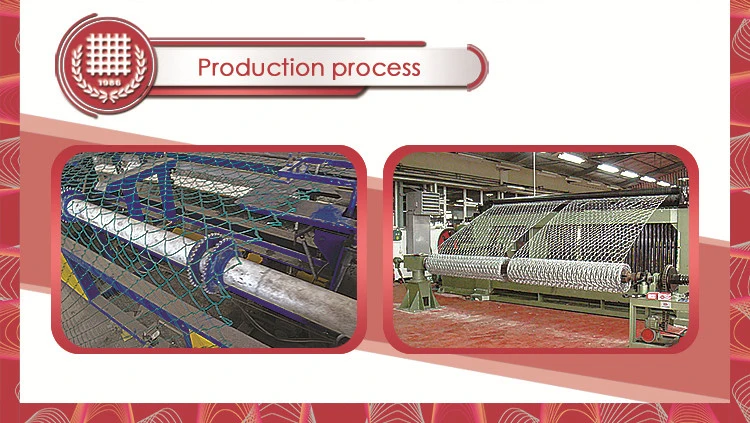

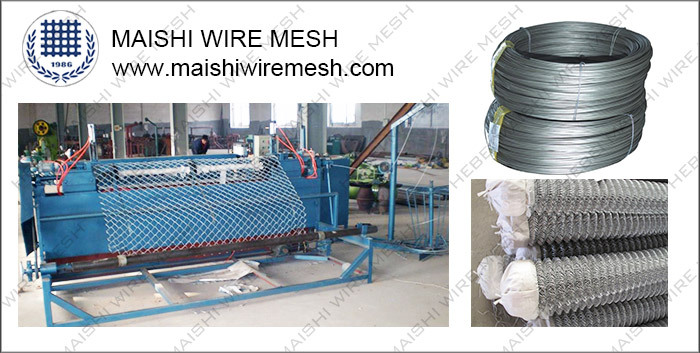

[ Production ]

A chain-link fence (also referred to as wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence) is a type of woven fence usually made from galvanized or LDPE-coated steel wire. The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern seen in this type of fence.








[ Sotck ] have stock for common specification, which is prepared for samples' request.

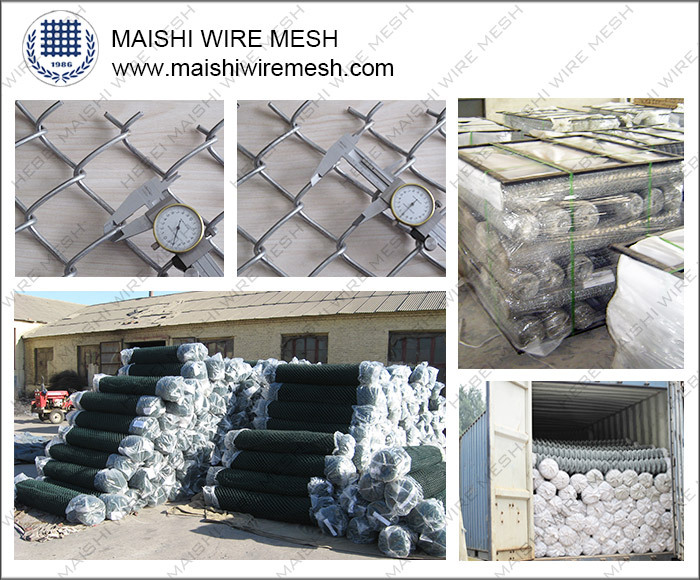

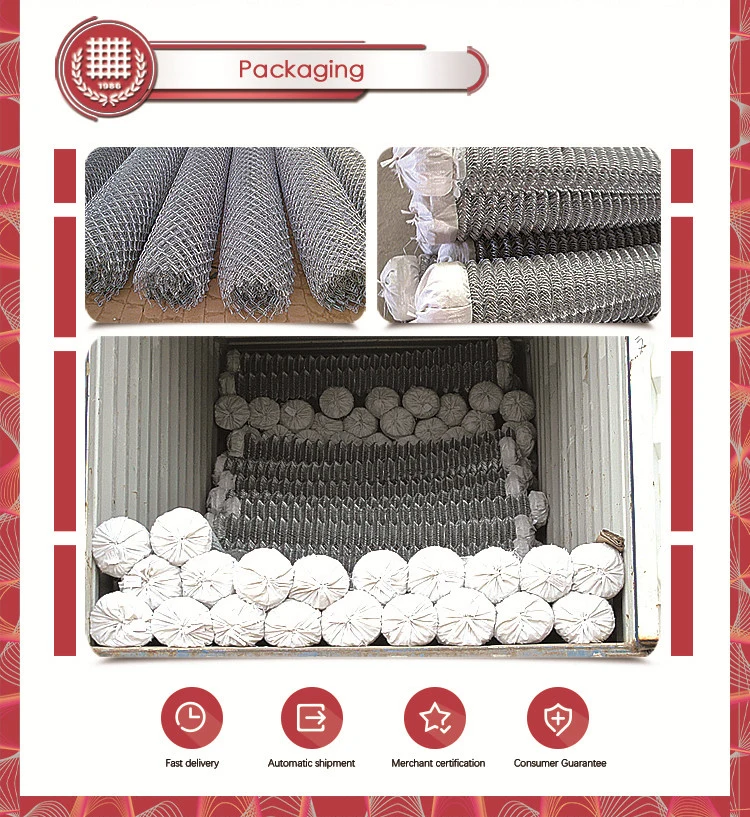

[ General Packing ]



Both ends is wrapped with plastic cloth and mesh bag,and then into the container .Special packaging requests are also accommodated






[ Uses ] Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry. Also used in breeding of animals
