Copper wire mesh

FOB Reference Price:Get Latest Price
US $5-56 / Meters | 500 Meter/Meters (Min. Order)
Wire Diameter:
0.051mm-0.711mm
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Material:
brass wire, copper wire
Type:
Weave Wire Mesh
Application:
separation kinds of pellet porcelain earth and glass, printing,filter
Weave Style:
plain weave, twill weave, dutch weave
Technique:
Woven
Model Number:
MS008
Brand Name:
Maishi
Color:
Red, Yellow
Mesh count:
6 mesh - 200 mesh
Opening:
0.076mm - 3.522mm
Width:
1m, 1.22m, 1.5m or at client's request
Roll length:
30m or 50m
Packing:
In waterproof paper and PVC bag
Feature:
Corrosion resisting, wear-resisting, tear- resisting
Supply Ability
Supply Ability:
5000 Square Meter/Square Meters per Week
Packaging & Delivery
Packaging Details
In waterproof paper and PVC bag. custom packing available at request.
Port
Xingang, Tianjin
Product Description

Brass & Copper :

Brass: As the alloy of copper and zinc, brass wire mesh has excellent abrasion resistance, corrosion-resisting, lower electric conductivity as compared with copper.

 Copper: Copper wire offers excellent electrical and thermal conductivity, it is non-magnetic, anti-sparking and is resistance to atmospheric corrosion, salt air and brine. Copper applications are limited due to its low tensile strength, poor resistance to abrasion and common acids.

Phosphor bronze is an alloy of Tin, phosphor and copper. It is corrosion-resisting, wear-resisting, tear-resisting, but not suitable for exposure to hydrochloric acid or strong oxidizing agents.

Specification:
Material:Copper/Brass/Phosphor bronze
Mesh count: 6 mesh/inch - 200 mesh/inch
Opening:0.076mm - 3.522mm
Wire diameter: 0.051mm - 0.711mm
Width:1m, 1.22m or at client's request.
Length: 30m or 50m or at client's request.
Usage: Separation and sifting kinds pellet, grain, porcelain earth and glass, chinaware printing, filter liquid.RFI shielding, Faraday cages, Tempest shileding etc.
Advantages:Non-magnetic, anti-sparking and resistant to atmospherice corrosion, salt air and brine.Soft, easy to cut or soldered.

Copper: Copper wire offers excellent electrical and thermal conductivity, it is non-magnetic, anti-sparking and is resistance to atmospheric corrosion, salt air and brine. Copper applications are limited due to its low tensile strength, poor resistance to abrasion and common acids.

Brass: As the alloy of copper and zinc, brass wire mesh has excellent abrasion resistance, corrosion-resisting, lower electric conductivity as compared with copper.

Phosphor bronze:
As the alloy of Tin, phosphor and copper. It is corrosion-resisting, wear-resisting, tear-resisting, but not suitable for exposure to hydrochloric acid or strong oxidizing agents.

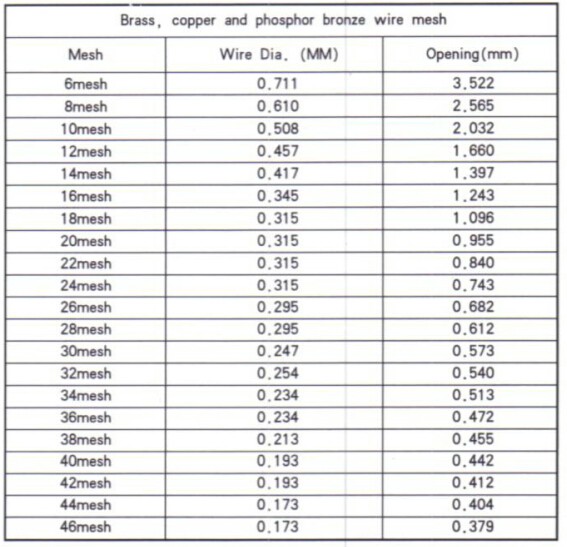

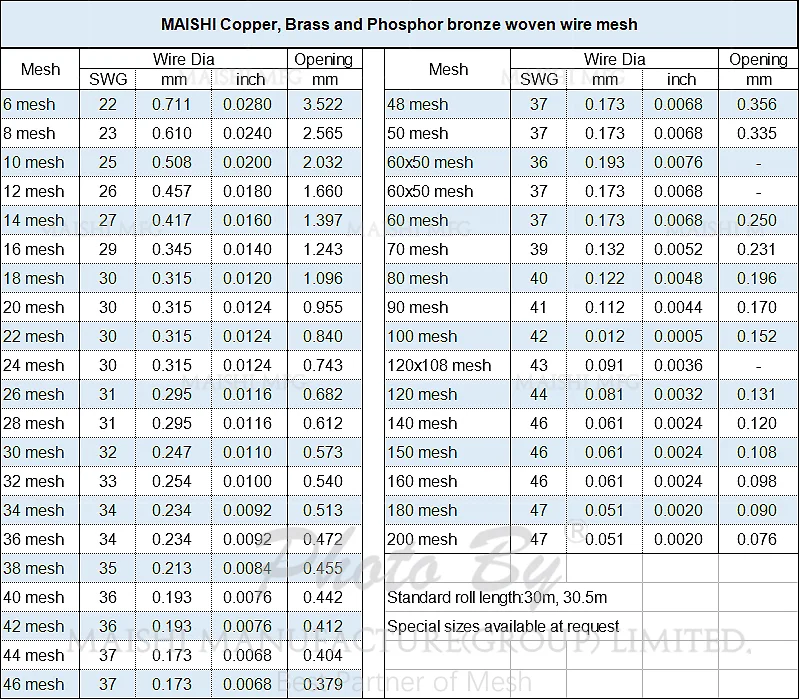

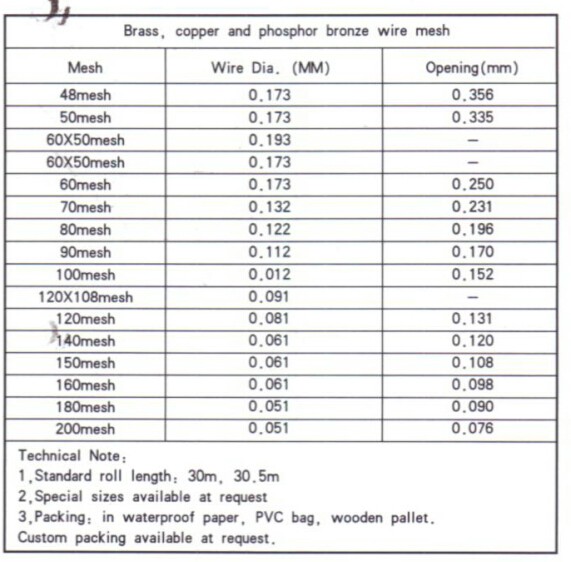

Specifications listed below:

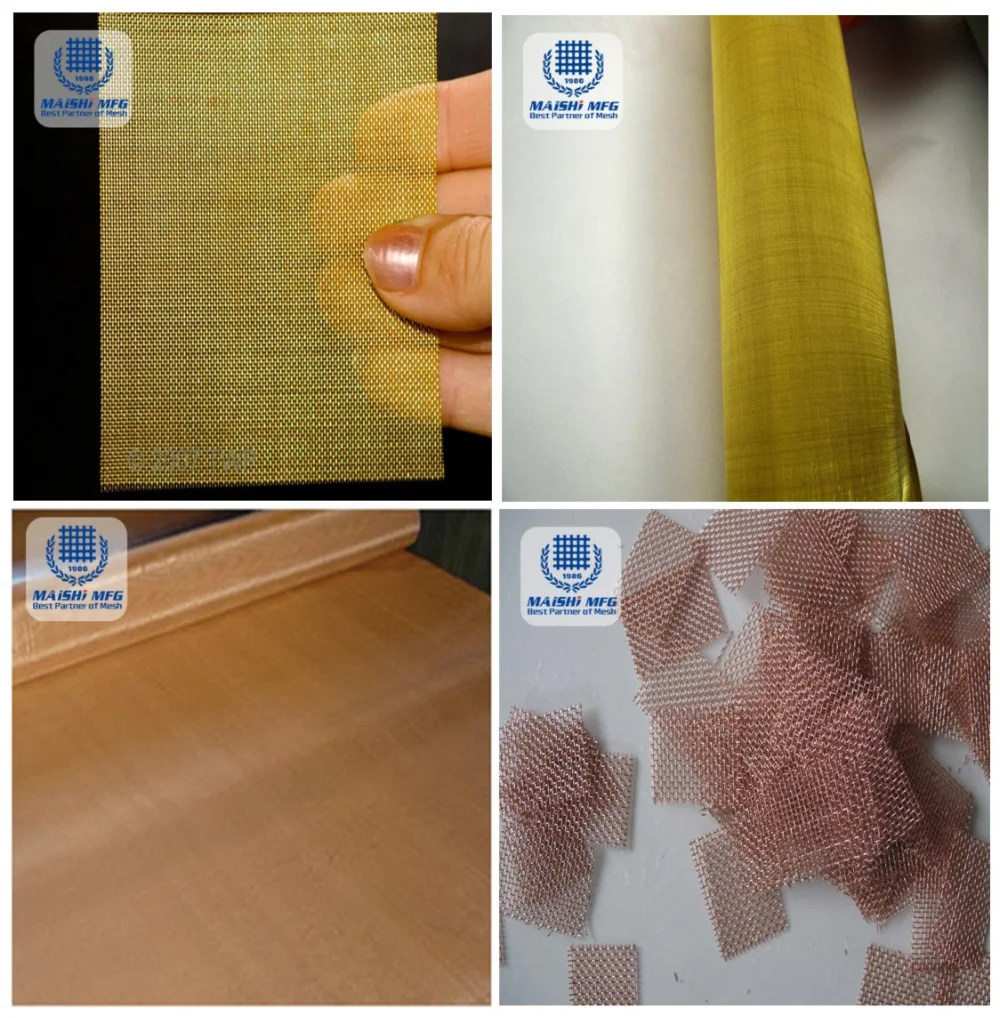

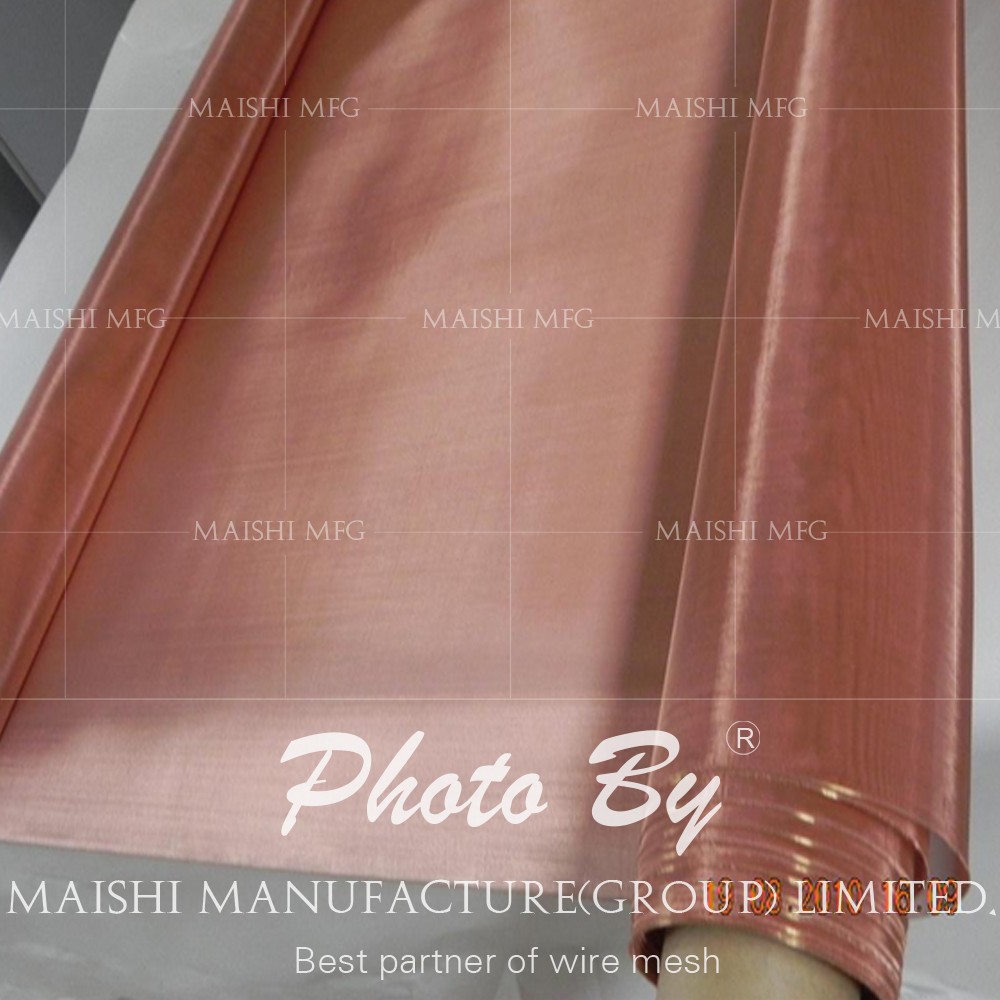

Detailed Images

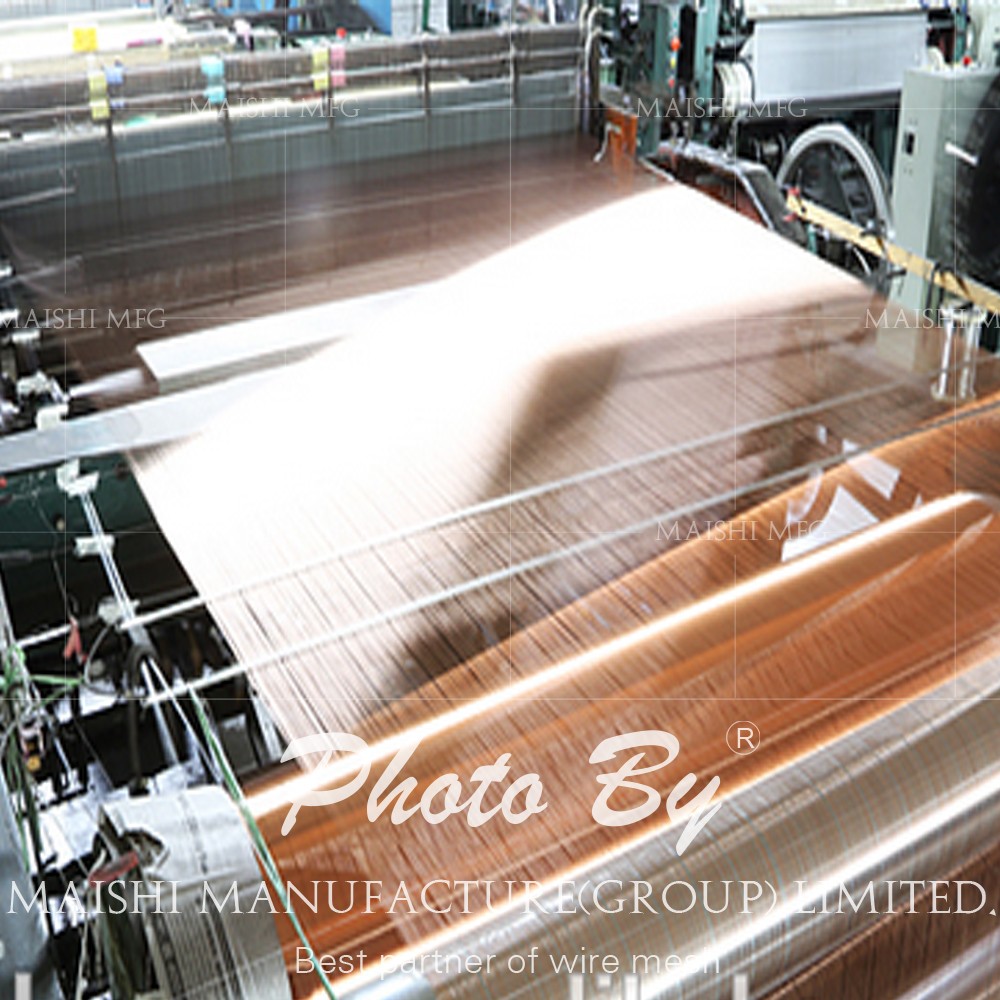

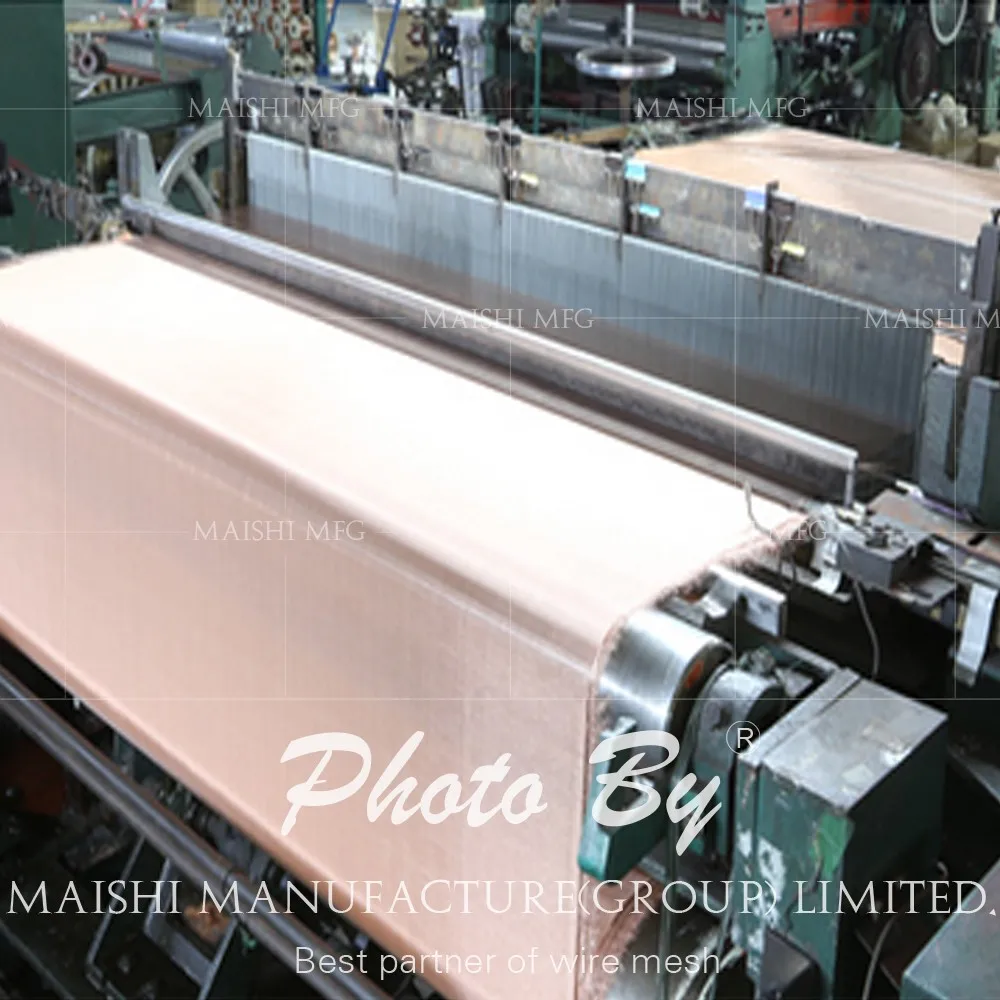

Production Process:

1. Raw material check

2. Material preparation

3. Finish dia.warping beam

4. Mesh wearing

5. Surface check


Quality Control:

1. Mesh count inspect
2. Thickness inspect
3. Thread diameter & Hole inspect
4. Tensile strength test
5. Surface tension test

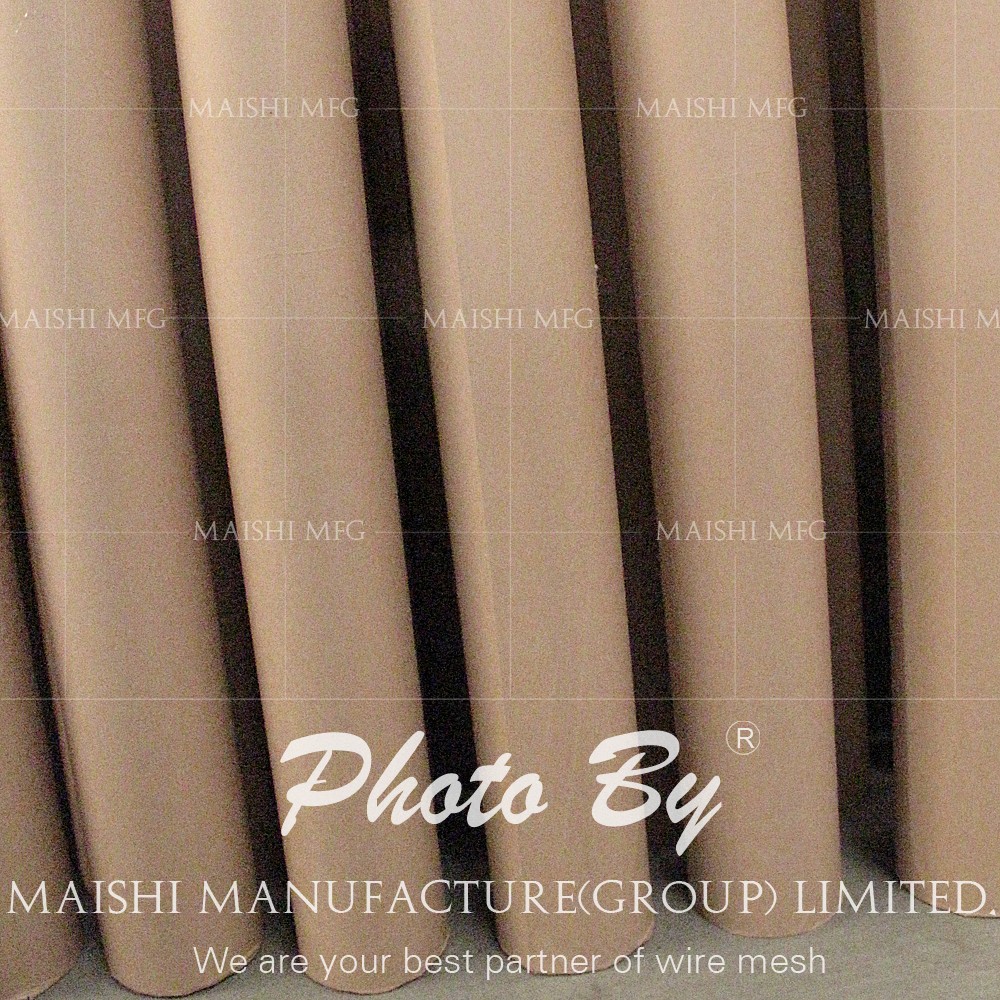

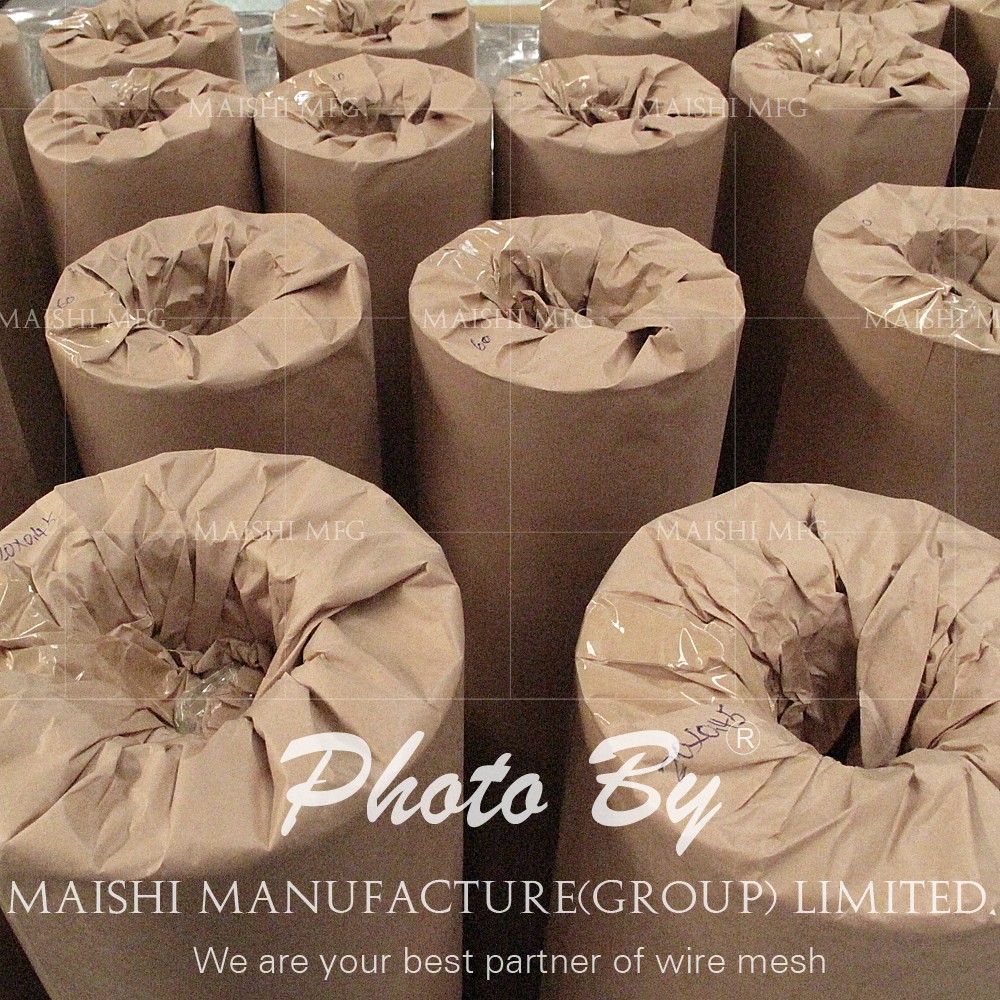

Packing
