nickel mesh

FOB Reference Price:Get Latest Price
US $5-100 / Meters | 30 Meter/Meters (Min. Order)
Contact Supplier Start Order
Loading... Request FREE Sample
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Material:
nickel
Type:
Wire Cloth
Application:
Filters
Weave Style:
Plain Weave
Wire Diameter:
0.5-8mm
Technique:
Woven
Model Number:
NKMS
Brand Name:
MAISHI
Efficiency:
90%
Porosity:
48um~1000um
After-sales Service Provided:
No overseas service provided
Condition:
New
Certification:
ISO
Filtration Grade:
Medium Filter
Medium Material:
nickel wire
Supply Ability
Supply Ability:
500 Roll/Rolls per Day
Packaging & Delivery
Packaging Details

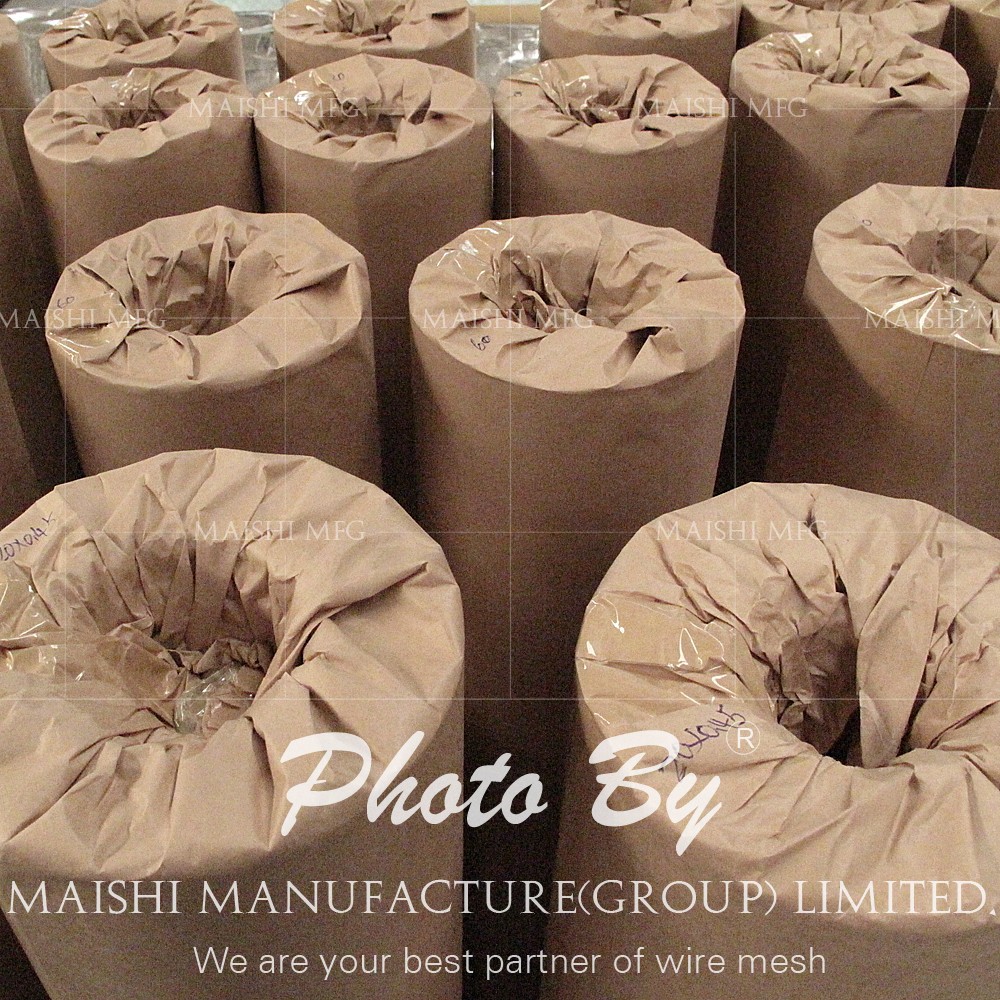

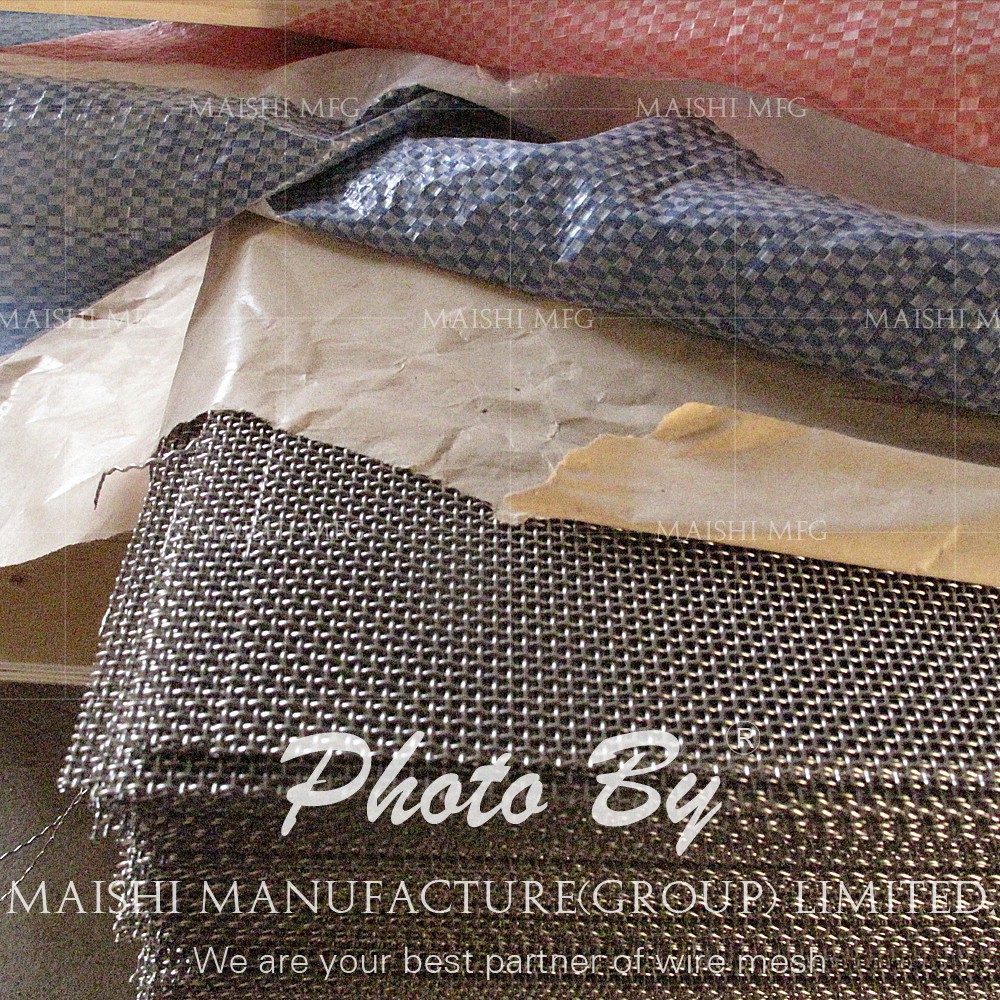

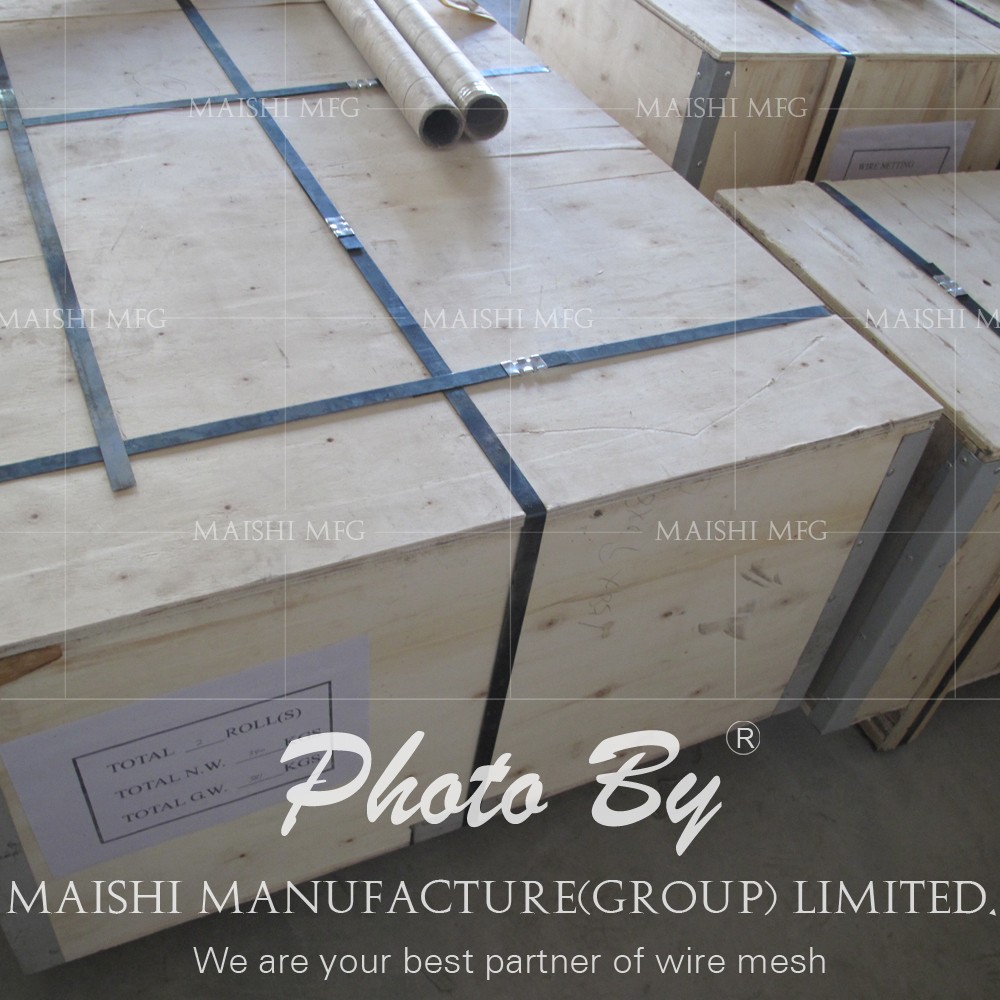

Paper tube inside, waterproof paper outside, packed in plywood box.
Port
Tianjin Xingang
Lead Time :
According to the quantity.
Product Description

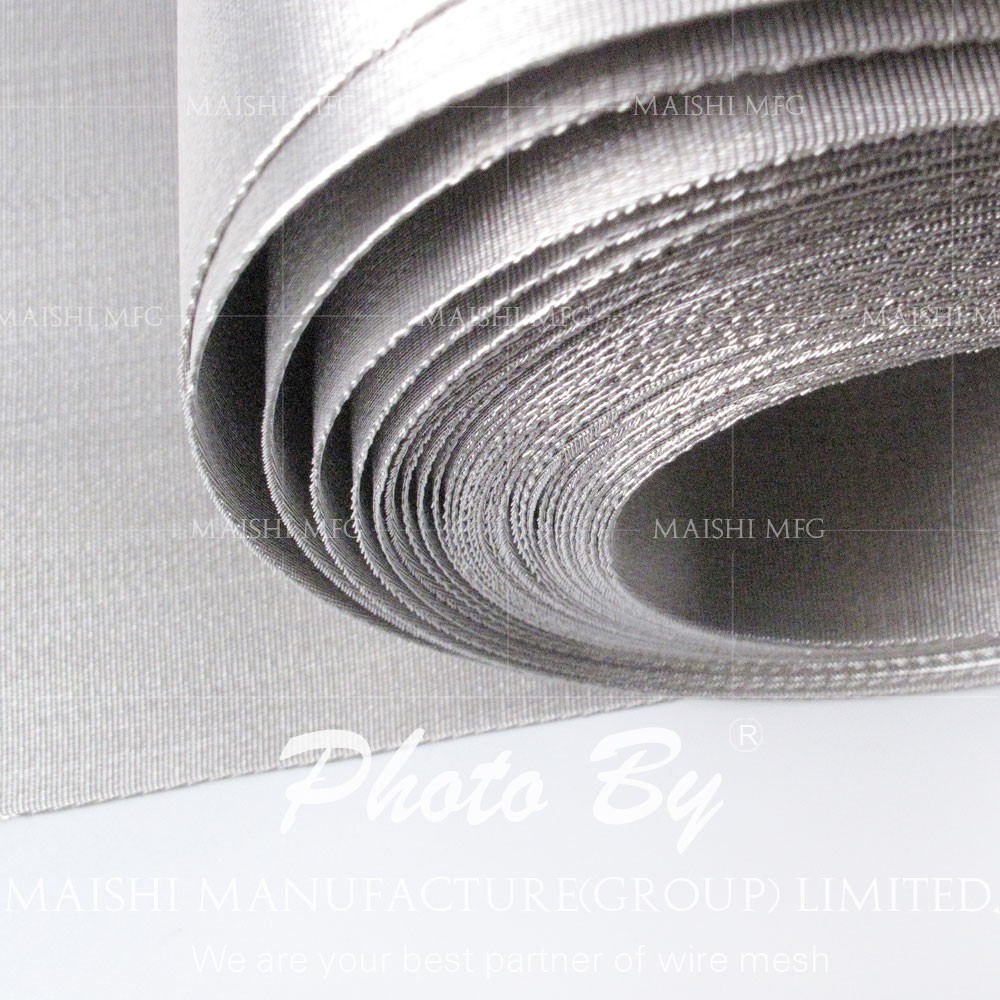

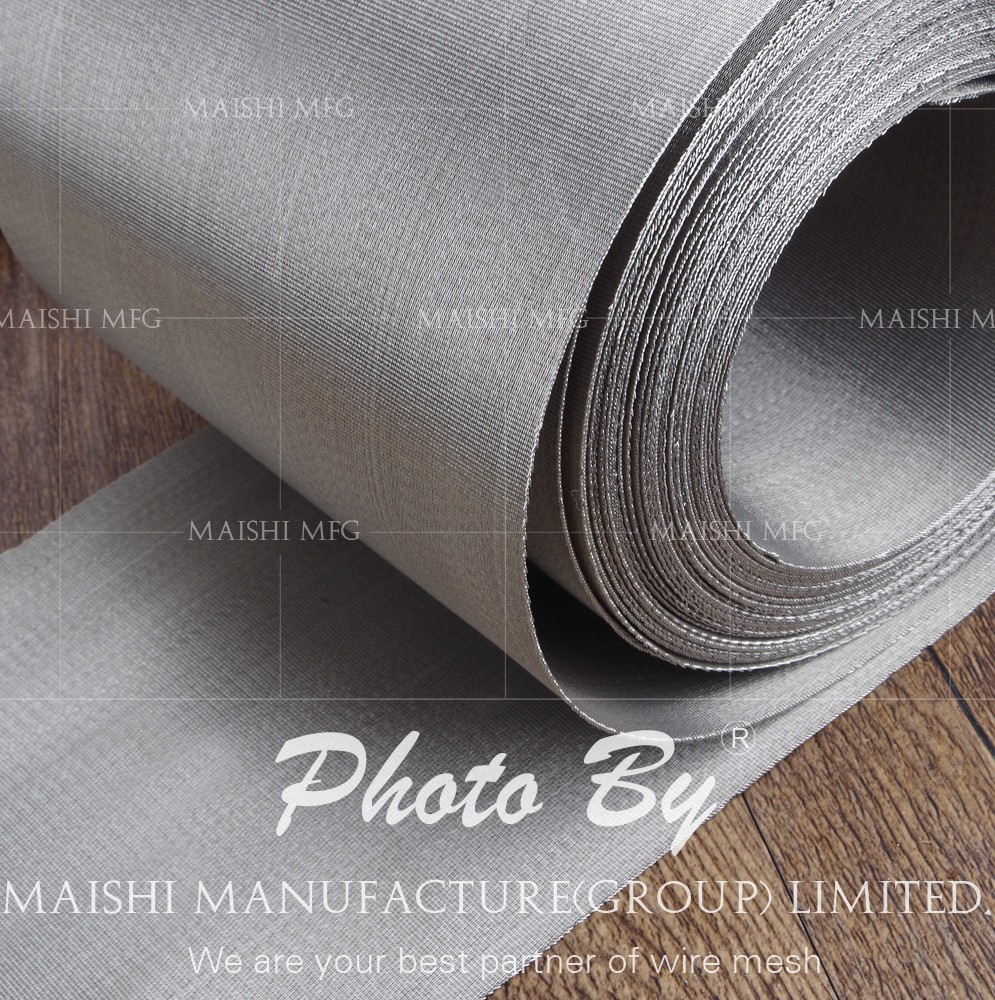

Nickel mesh, mainly used for acid and alkali sieving and environmental conditions, gas, liquid filtration and other media separation.

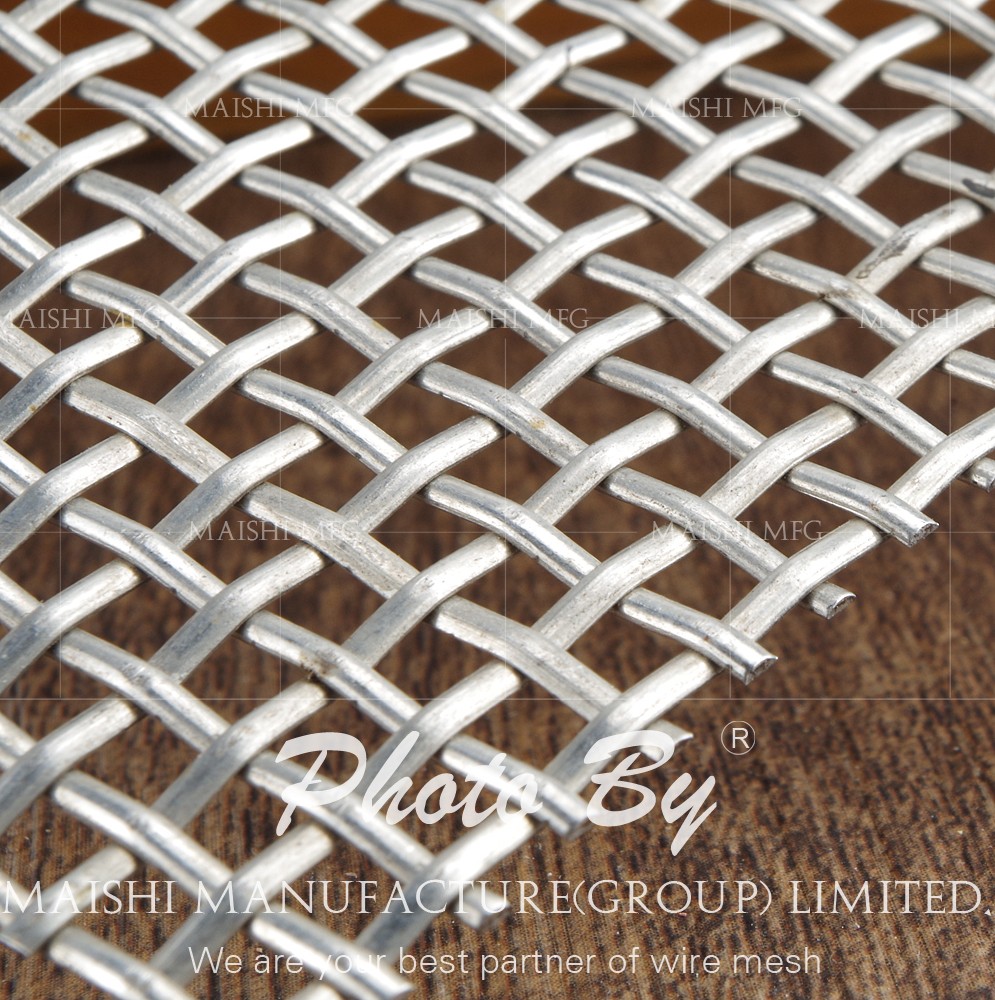

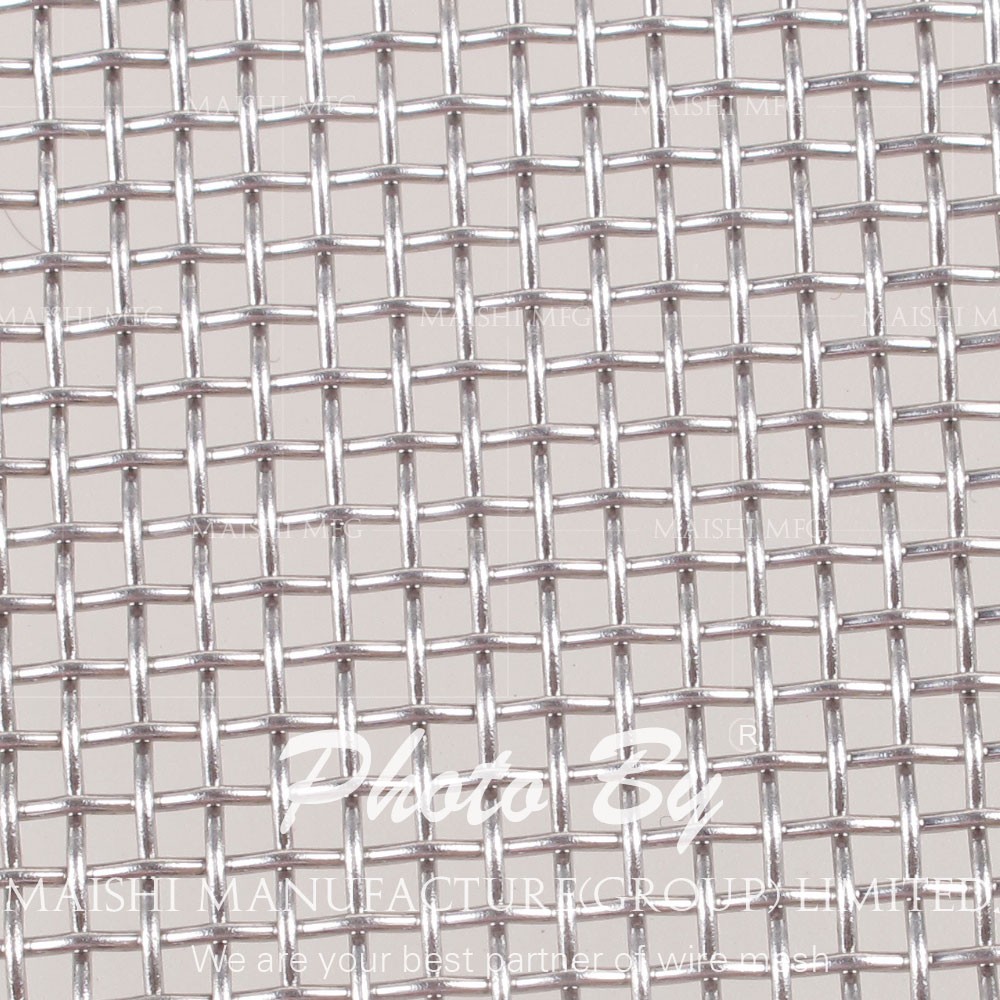

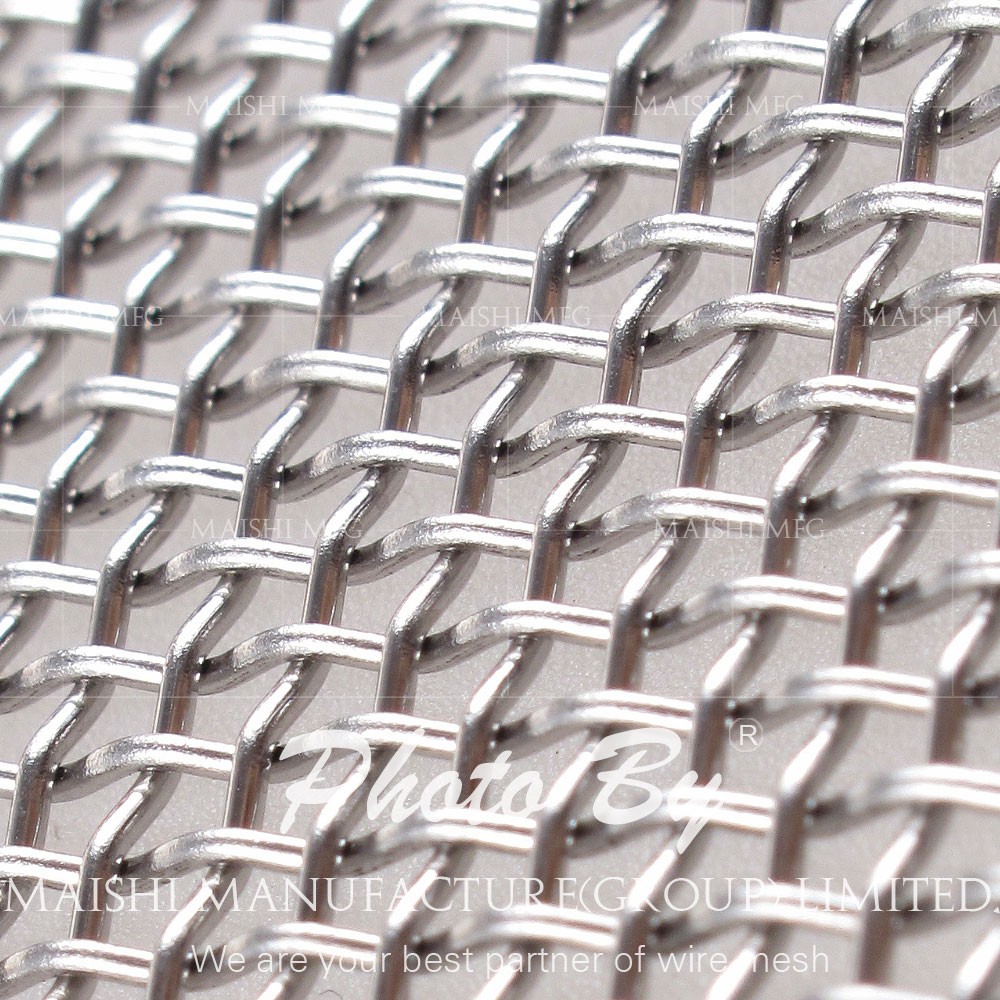

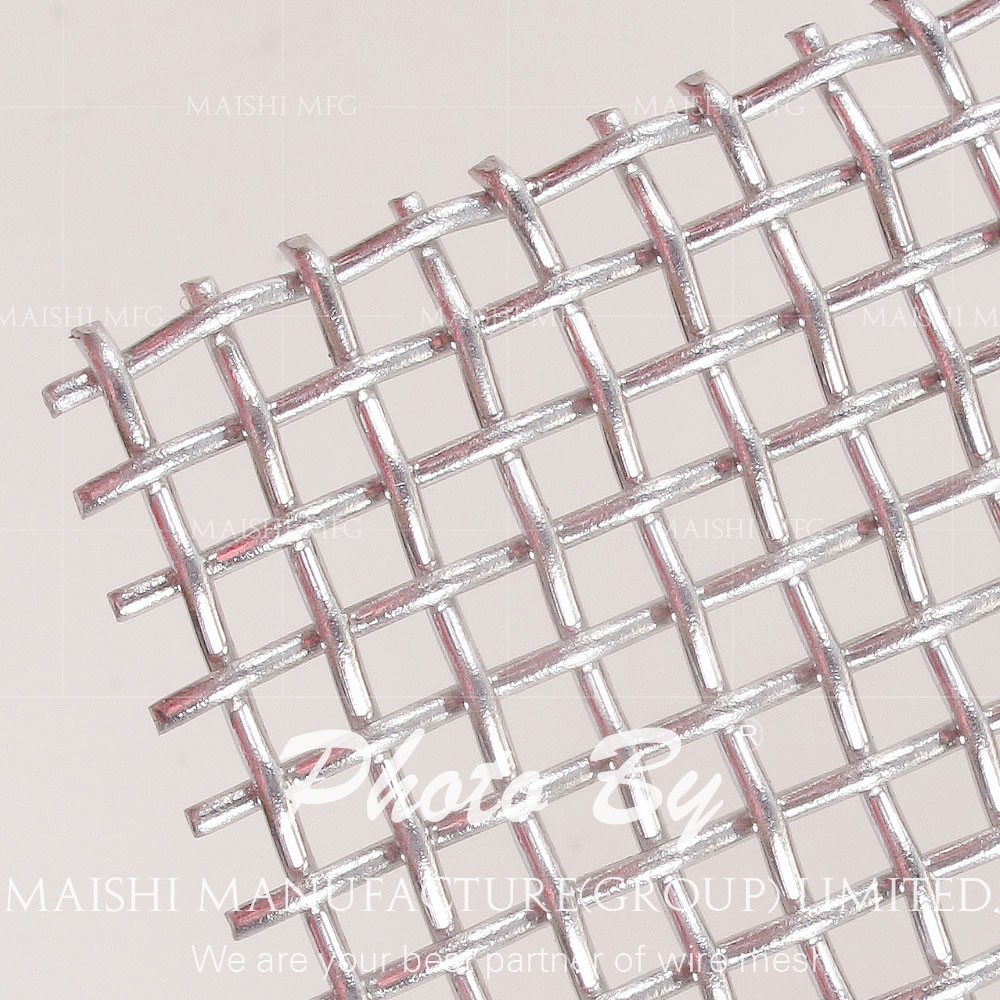

Plain weave nickel mesh
Most common weaving method, the main feature is the warp and weft wire diameter of the same density.
It is suitable for industries such as petroleum, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and so on. Nickel wire is woven into various specifications net and cloth. It has good acid resistance, alkali resistance and high temperature resistance.

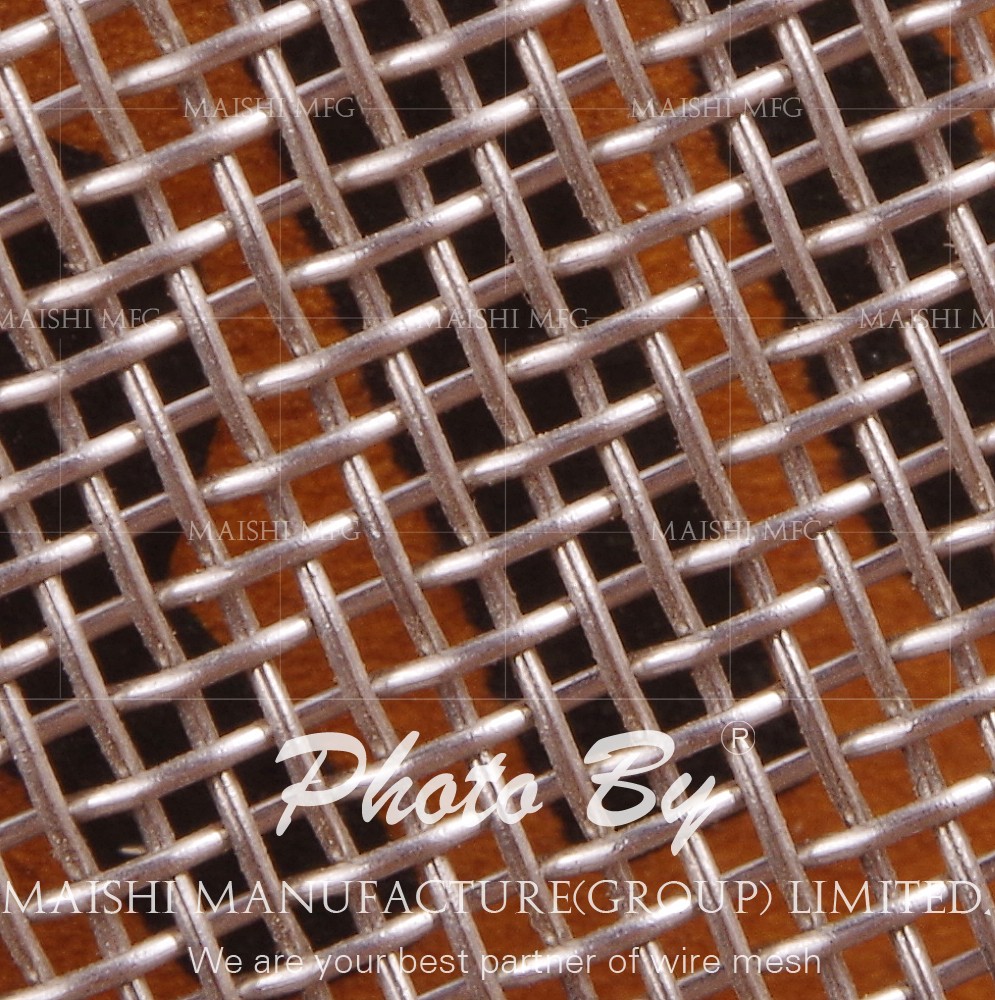

Twill weave nickel mesh
Twill weave is a kind of commonly used weaving method. One weft wire passes over two and under two warp wires, and one warp wire passes over and under two weft wires. The wire diameter for both( warp and weft) is mostly the same. It is square aperture.
Filteration rate is a little higher than the plain weave nickel mesh.
Plain dutch weave nickel mesh
Plain dutch weave is a kind of commonly used weaving method. Each warp wire and each weft wire passes over and under the next adjacent complementary wire, as in normal Plain Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction.
Twill dutch weave nickel mesh
Twill dutch weave is a kind of commonly used weaving method. Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, as in a normal twill weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction. This weave pattern enables the weft wires to be woven more densely, and much smaller aperture sizes can be achieved without forsaking cloth thickness.
Related Products

304 stainless steel mesh

click the photo to learn more

316 stainless steel wire mesh

click the photo to learn more

stainless steel filter

click the photo to learn more
Our Company

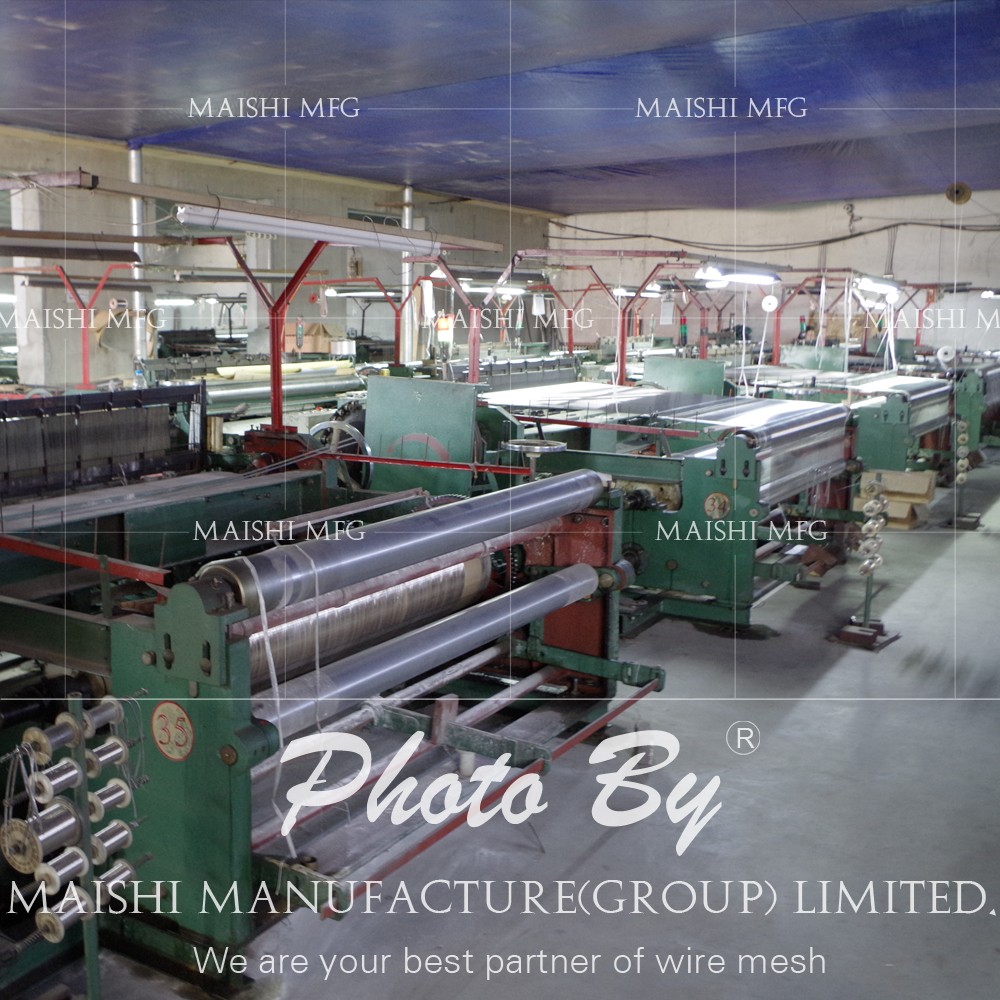

We connected with production of stainless steel woven wire mesh and netting, since 1992, in China. The machinery and apparatus used in production process fully based on the high computer technology, so it is accepted as the only company capable of having TSE ( Chinese Standard Institution ) certificate and ISO 9001:2008, all of our produce according ISO9044：1999, JIS G 3555：2004, and ISO3310/BS410 etc.

Our mainly market of stainless steel wire mesh/colth in Germany, UK, Italy, Turkey, Korea, Thailand, Brazil, Mexico, Argentina, Egypt, Ghana, and other parts in the world. We have good reputation in the world with the quality and price. You are welcome to send by email or fax your inquiry for trial orders.

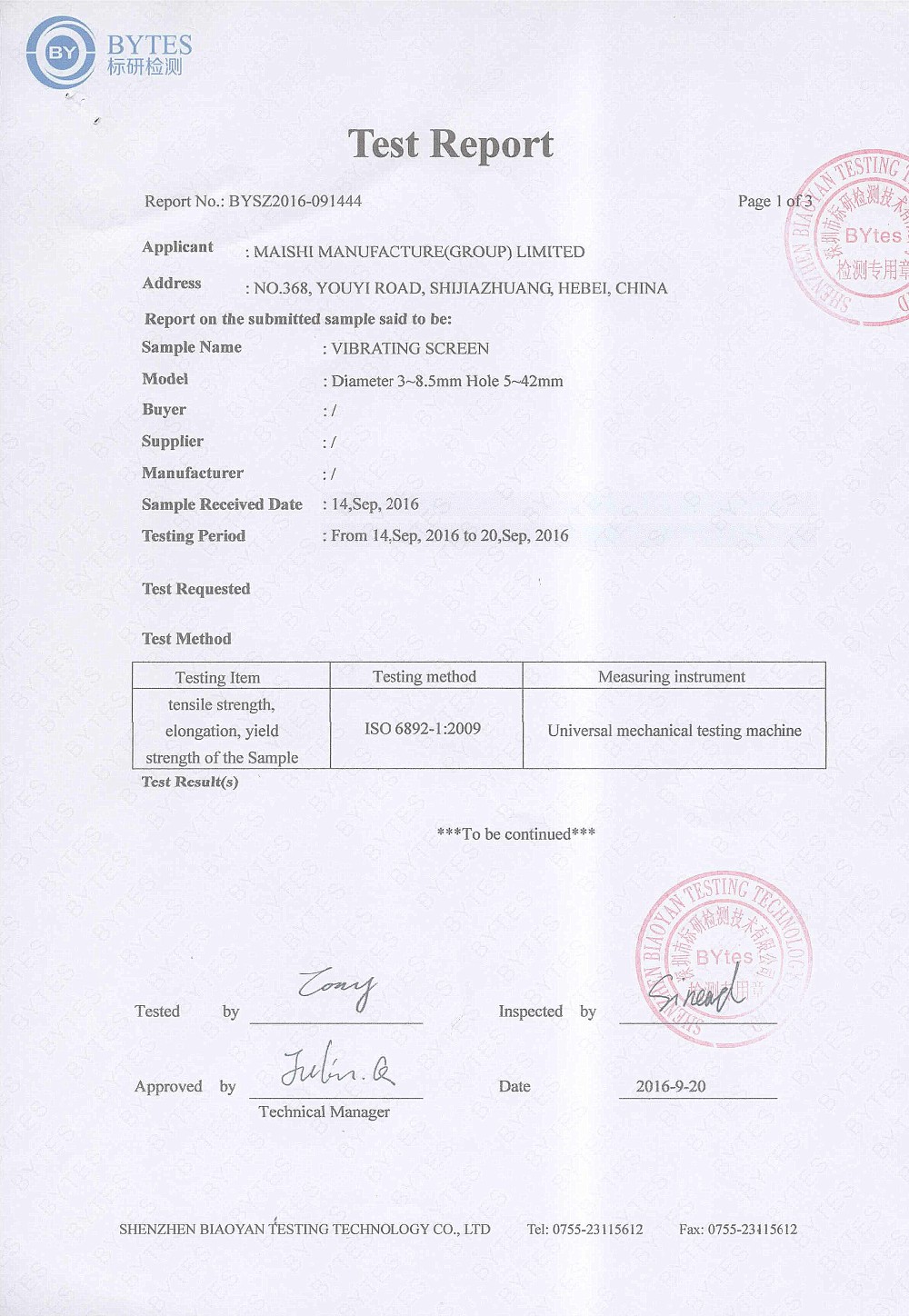

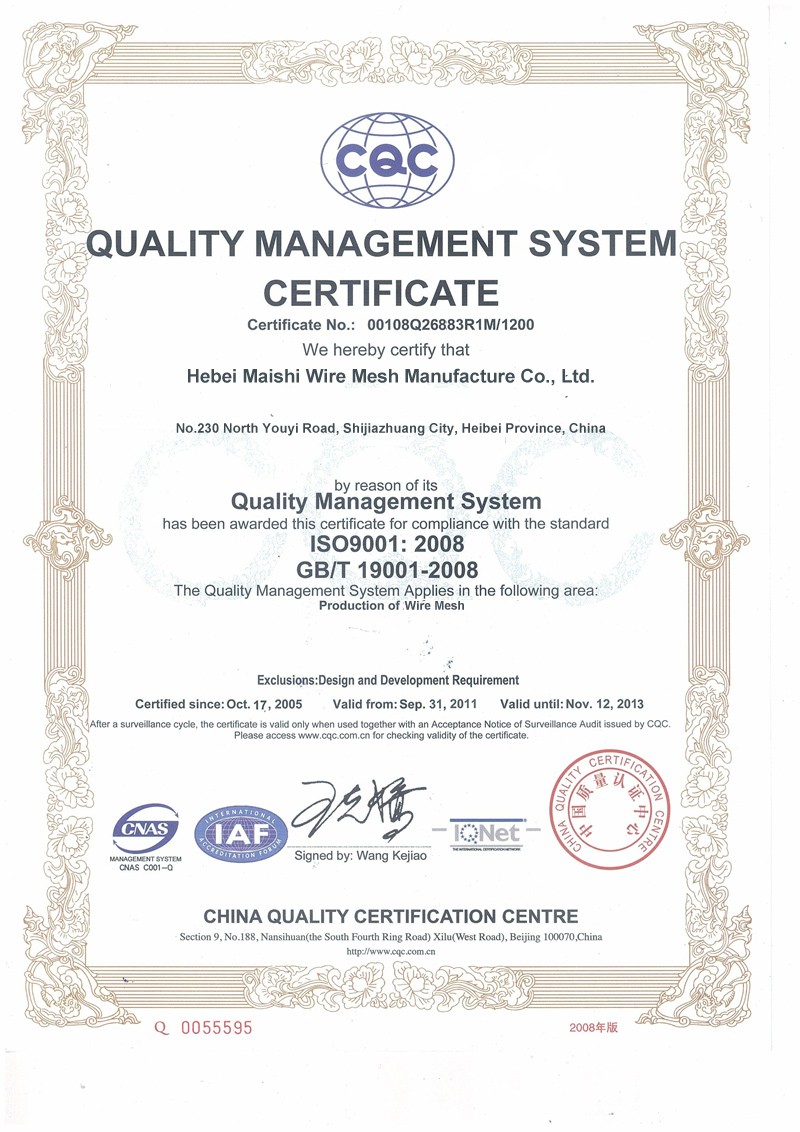

Certifications
