copper wire netting

FOB Reference Price:Get Latest Price
US $11.9-39.5 / Square Meters | 100 Square Meter/Square Meters Xingang (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Material:
brass wire
Type:
Weave Wire Mesh
Application:
Filters, separation kinds of pellet porcelain earth and glass, printing,filter
Weave Style:
PW, TW, DW
Wire Diameter:
0.051mm-0.711mm
Technique:
Woven
Model Number:
MS-TMQR
Brand Name:
Maishi
Product name:
copper wire netting
Hole size:
0.076mm - 3.522mm
Mesh size:
6 mesh - 200 mesh
Wire diameter:
0.051mm-0.711mm
Weaving type:
Plain weave
Package:
in waterproof paper and pvc bag. custom packing avaliable at request.
Sample:
free sample sent on request
Payment:
T/T,L/C ,can be negotiable
Certificate:
ISO9001:2008
Supply Ability
Supply Ability:
1000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Packaged with water proof paper per roll,then in wooden carton.
Port
Xingang
Lead Time :
With in 15days after received the advanced payment
Product Description

copper wire netting

Brass & Copper :
Brass: As the alloy of copper and zinc, brass wire mesh has excellent abrasion resistance, corrosion-resisting, lower electric conductivity as compared with copper.
Copper: Copper wire offers excellent electrical and thermal conductivity, it is non-magnetic, anti-sparking and is resistance to atmospheric corrosion, salt air and brine. Copper applications are limited due to its low tensile strength, poor resistance to abrasion and common acids.
Phosphor bronze is an alloy of Tin, phosphor and copper. It is corrosion-resisting, wear-resisting, tear-resisting, but not suitable for exposure to hydrochloric acid or strong oxidizing agents.

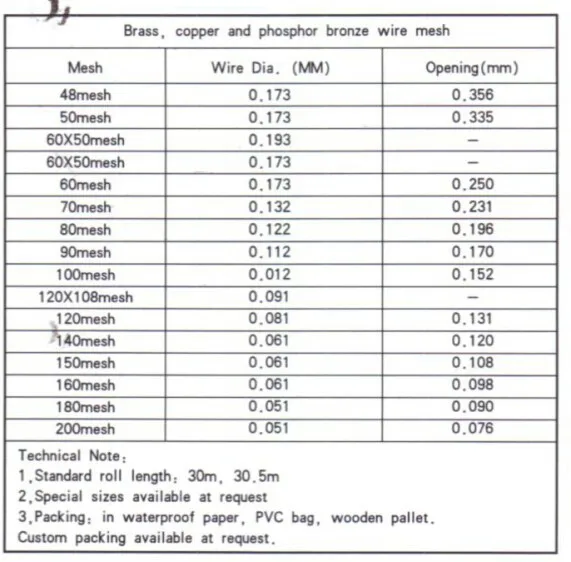

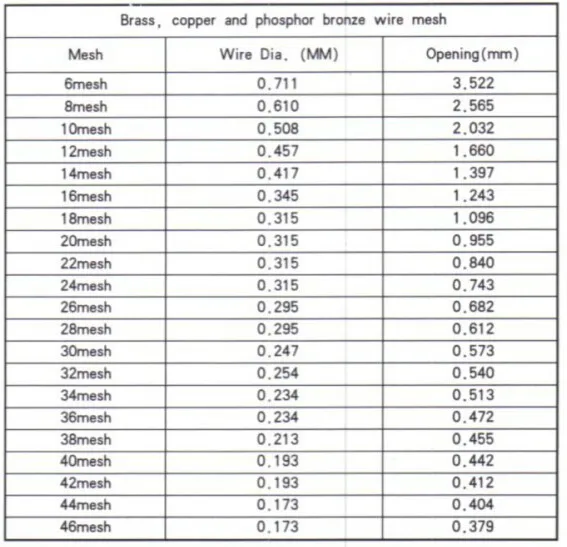

copper wire netting specification:

Mesh count: 6 mesh/inch - 200 mesh/inch
Opening:0.076mm - 3.522mm
Wire diameter: 0.051mm - 0.711mm
Width:1m, 1.22m or at client's request.
Length: 30m or 50m
Usage: Separation and sifting kinds pellet, grain, porcelain earth and glass, chinaware printing, filter liquid.

Detailed Images
Packing & Delivery

bronze screen

Production Process:
1. Raw material check
2. Material preparation
3. Finish dia.warping beam
4. Mesh wearing
5. Surface check


Quality Control:
1. Mesh count inspect
2. Thickness inspect
3. Thread diameter & Hole inspect
4. Tensile strength test
5. Surface tension test

Production
Packing and Delivery

copper wire netting

Packing:
Inside the roll with "paper tube" to reduce the pressure while loading; Then wrapped with "plastic film" as well as the "woven bag" on the finished roll, Final loaded in the strong wooden case or as customers' requirement
Payment:
100%T/T in advance if order amount less thanUSD10000.00, 30%paid in advance and 70%paid before shipment if order amount more than USD10000.00.
L/C payment is workable.
Any other payment term can be negotiatory
