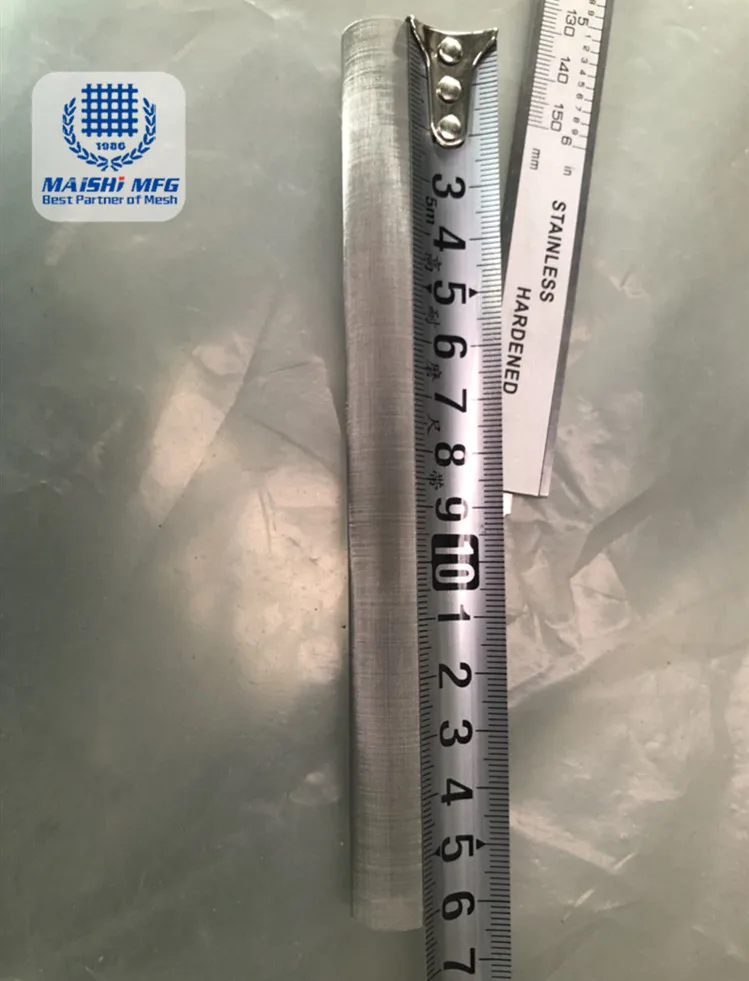

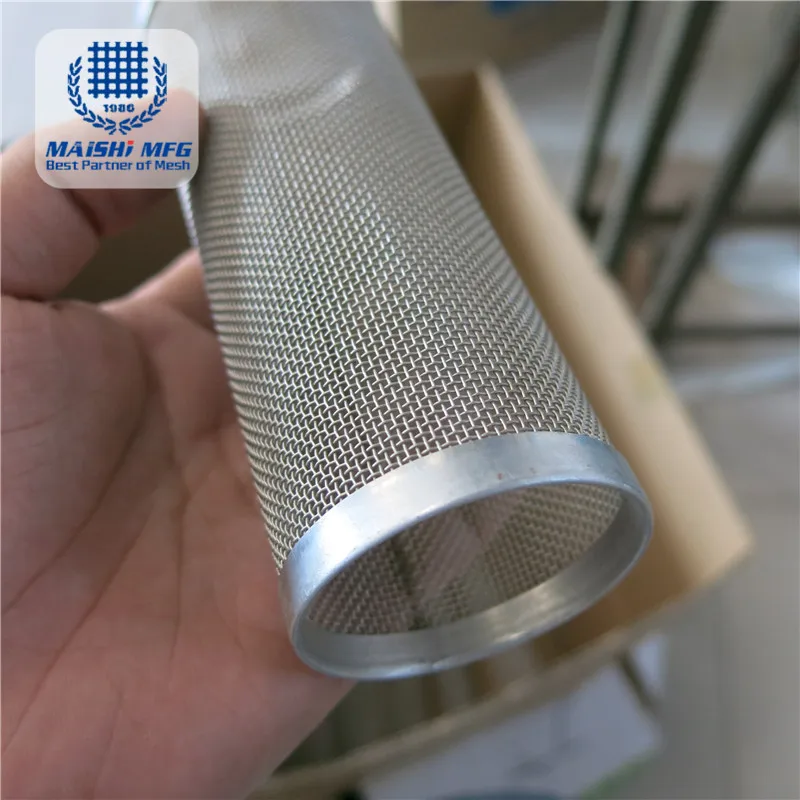

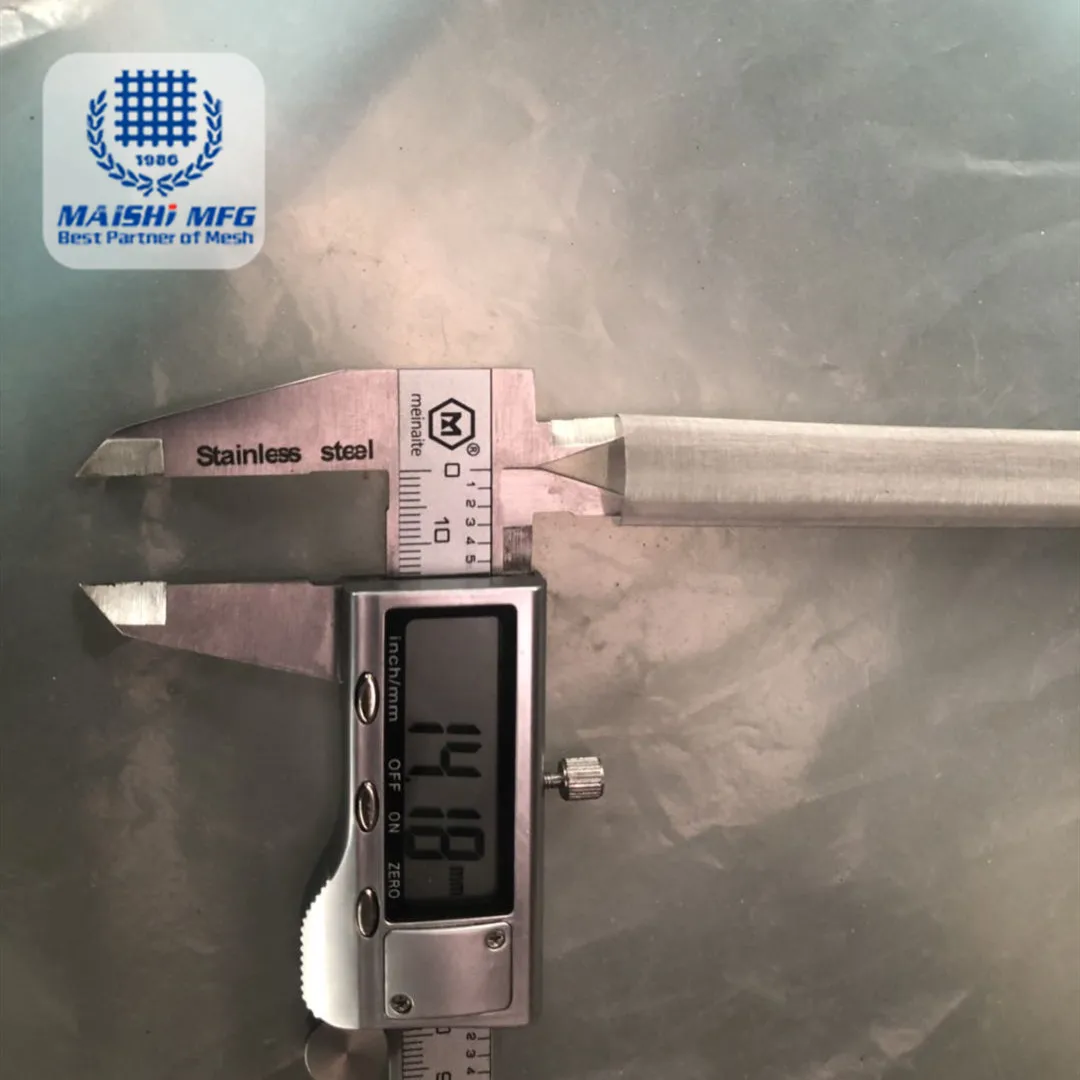

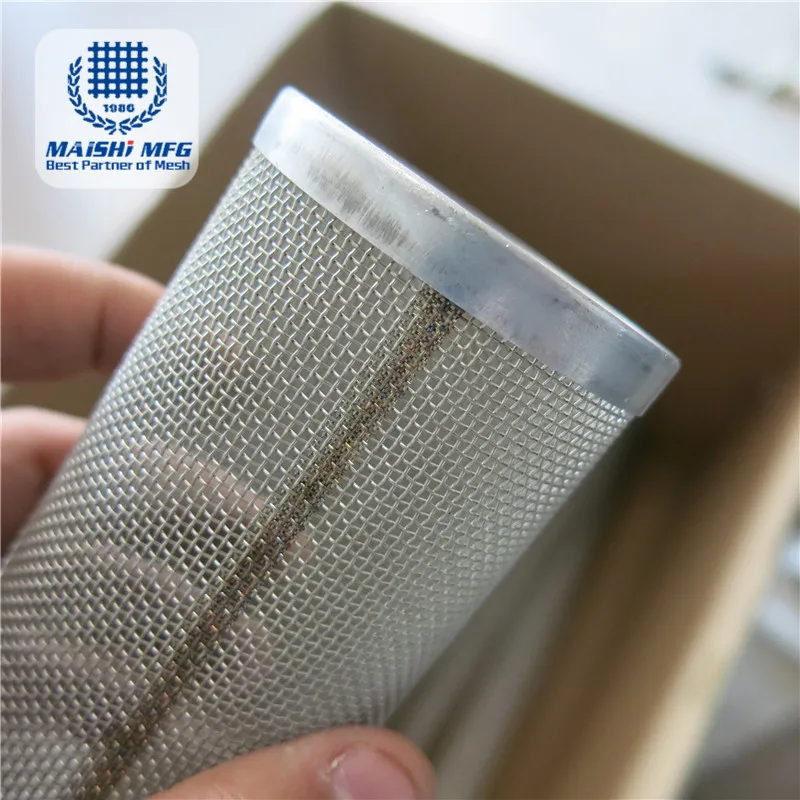

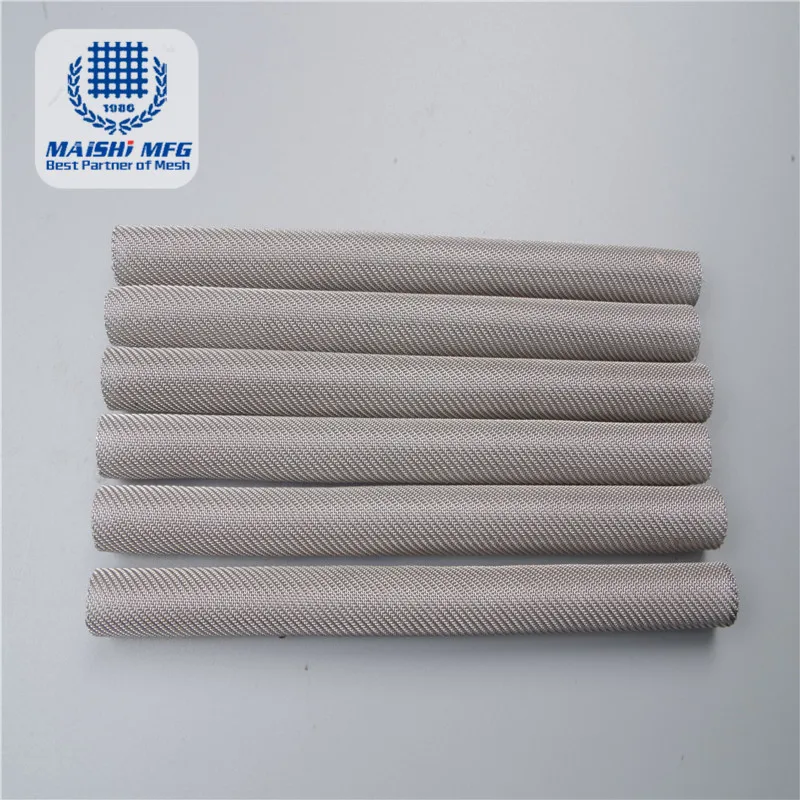

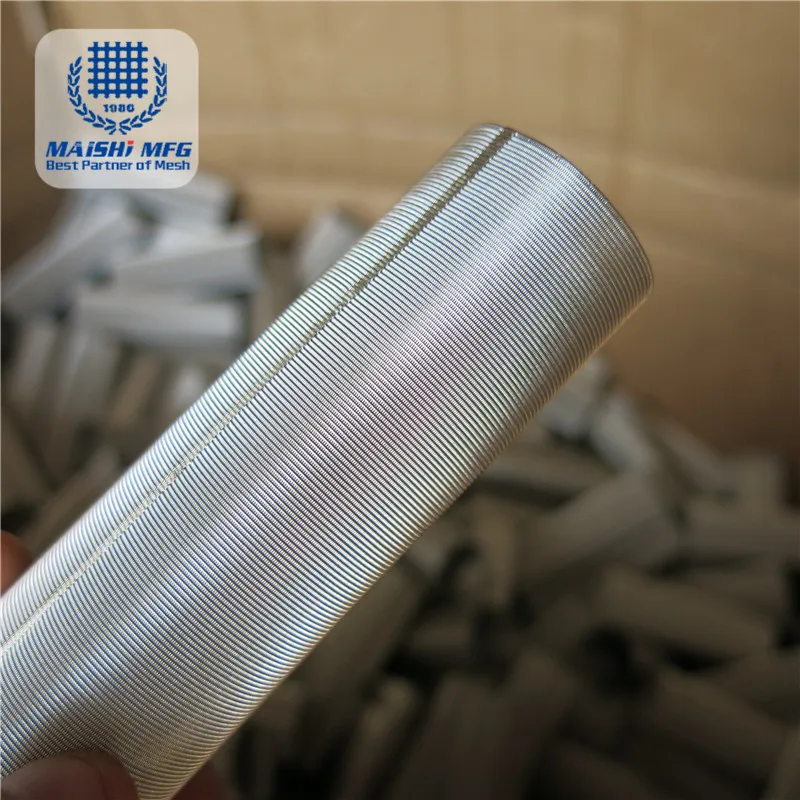

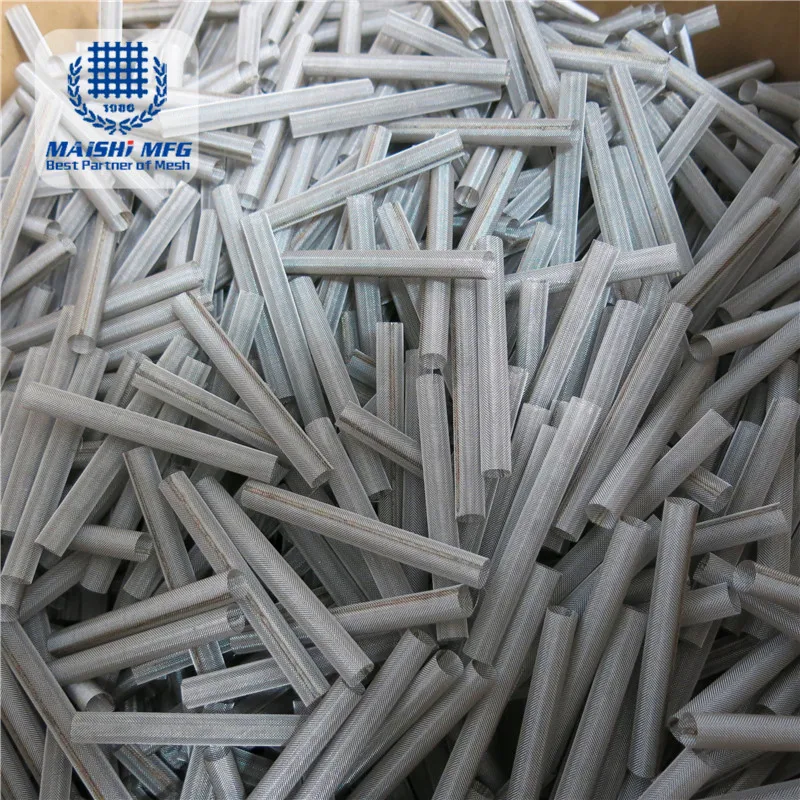

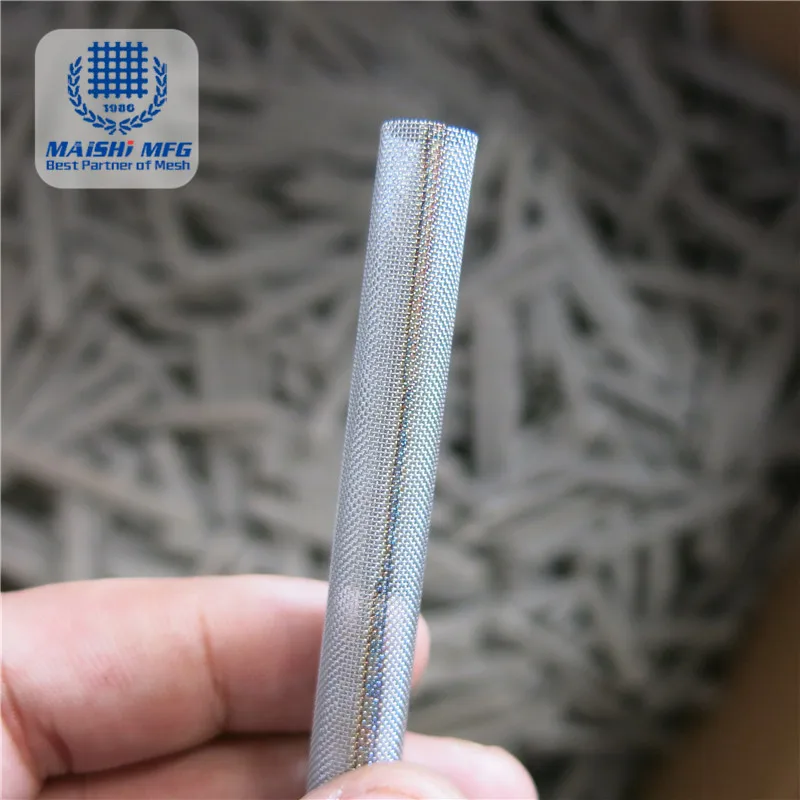

150 micron stainless steel mesh cylindrical filter

FOB Reference Price:Get Latest Price
$0.50 - $8.00 / Piece | 100.0 Piece/Pieces (Min. Order)
Wire Diameter:
0.025-1.8mm
Aperture:
100um - 150um
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 25 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Material:
STAINLESS STEEL WIRE, AISI 304/316/316L
Type:
Weave Wire Mesh
Application:
Woven Wire Mesh
Weave Style:
Plain ,Dutch ,Twill
Technique:
Woven
Model Number:
WSWM
Brand Name:
Maishi
Aperture:
25 micron to 5000 micron
Mesh count:
0.5 mesh to 2800 mesh
Shape:
Disc, sheet, ribbon, tube
Cylinder diameter:
5mm to 600mm
Cylinder length:
8mm to 600mm
Processing Service:
Please discuss with us
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Poly wood crate
Port
Xingang
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 10000 >10000
Est. Time(days) 25 30 To be negotiated
Product Description

The production according to ISO9001 quality management system. Mesh produced are from 0.5 mesh per inch to 2800 mesh per inch. Goods exports to NORTH AMERICA, SOUTH AMERICA, EUROPE, ASIA, MIDDLE EAST and AFRICA.

150 micron stainless steel mesh cylindrical filter specification

Mesh count: 0.5 mesh - 2800 mesh
Wire diameter: 0.025mm - 2.0mm
Weave type: plain, twill, plain dutch, twill dutch, reverse dutch
Material: AISI/SUS 201,202,304,304L,316,316L,310,310S,430
Width: 2FT, 3FT, 4FT, 5FT etc
Standard: A580 , JIS6 , GBT

We can design various types of products according to our customers needs, you can find any products here, for special designs please send your sample to us.

1.Mesh Rolls       2.Mesh Belts     3.Mesh Sheets    4.Mesh Ribbons

5.Mesh Tubes     6.Sintered mesh  7.Crimped mesh  8.Decoration mesh

Features
1.
Heat resistance, acid resistance and corrosion resistance and wear.
2.
Accurate and stable filtering rate.
3.
High mechanical strength .
4.
Easy to clean.
5.
Suitable for cutting, bending, stamping, drawing, welding and other processing conditions.
Packing & Delivery

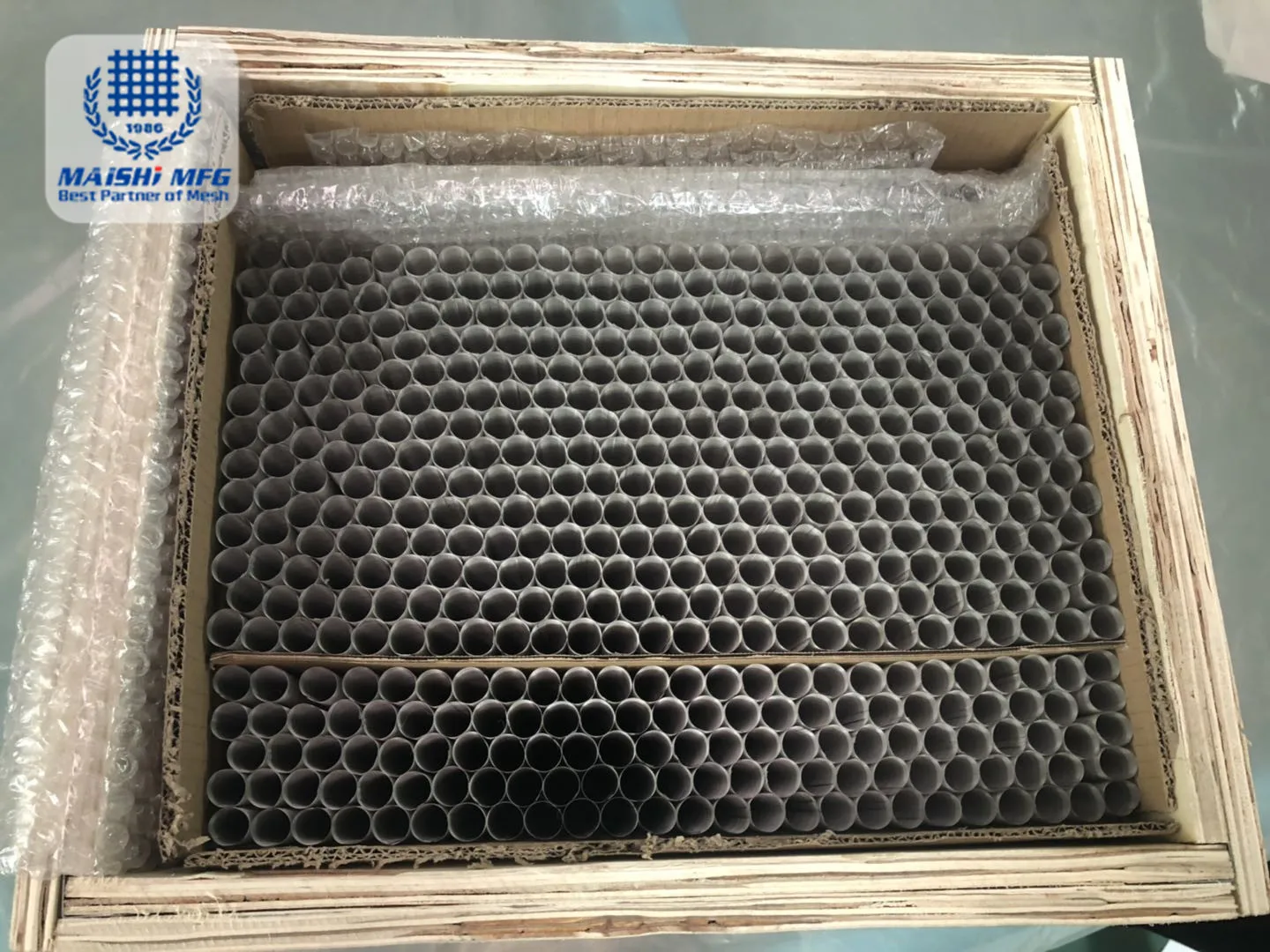

1) We pack the mesh with - waterproof paper bag - plastic film - wooden case
2) For small order : if the weight less than 50KG, we can use TNT/FedEx/DHL express to delivery the goods to your door.
3) For big order : usually we use ocean shipping
Payment term : we accept various payment term like Paypal ,West Union , TT ,L/C etc.

Quality Control

High quality is guaranteed by the usage of real material, zero mesh defects, precision weaving and strong structure and finishing.  We take strict quality control in each production process and final inspection by our Quality Control System. At Final Inspection, every meter of mesh is inspected for any kind of fault according to our Quality Control System. Only tested, approved,  A-Grade mesh is sold to our customers.

Company Information

We connected with production of stainless steel woven wire mesh and netting, since 1986 in China. The machinery and apparatus used in production process fully based on the high computer technology, so it is accepted as the only company capable of having TSE ( Chinese Standard Institution ) certificate and ISO 9001:2008, all of our produce according ISO9044:1999, JIS G 3555:2004, and ISO3310/BS410 etc.


1. Dedicated and experienced weavers.
2. Consistent quality products.
3. On-time delivery.
4. We have 15 R&D technical staffs, with more than 10 years experience.
5. 90% repeat customers.
6. Reasonable claim refund system.
Technical Info

Mesh – The number of openings per lineal inch.
Aperture- The distance between two adjacent wires
Diameter- The thickness of the wire before weaving
% Open Area- The ratio of the area of the aperture to the area of the mesh expressed in percentage terms
Warp- All wires running length of the cloth as woven
Weft- All wires running across the cloth as woven

Calculating

1. Mesh Count = 25.4mm/D+A
2. Aperture= 25.4mm/Mesh count - Diameter
3. % Open Area= A/(A+D)² X 100%
4. Micron= Aperture(mm) X 1000

Types of weave

 1. Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple cross-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less



If any need, welcome to contact us.
