concrete reinforcement welded wire mesh

FOB Reference Price:Get Latest Price
US $14-21 / Sheets | 200 Sheet/Sheets accord to customer's request (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
MAISHI
Model Number:
RWWM
Material:
Low-Carbon Iron Wire, Low-Carbon Iron Wire, ribbed steel, smooth steel, ribbed steel
Type:
Welded Mesh
Application:
Construction Wire Mesh
Hole Shape:
Square
Aperture:
100x100mm,150x150mm,200x200mm
Wire Gauge:
4mm-10mm
Product name:
concrete reinforcement welded wire mesh
Certificate:
ISO9001:2000
Width:
1m, 1.22m, 2.1m, 2.2m,etc
Length:
2.44m, 5.4m, 5.8m,etc
SupplyAbility
SupplyAbility:
10000 Square Meter/Square Meters per Day accord to customer's request
Packaging & Delivery
Packaging Details
nude packing or load in pallet
Port
XINGANG
Lead Time :
normally within 15-20days after received the advance payment

concrete reinforcement welded wire mesh

Product Description



We can supply reinforcing mesh with high quality,favourable price and best service.

standard size:

material:ribbed steel

wire dia:4-16mm.
opening:50- 200mm
width:1-3m

Length:1-8m





BS4483 BRITISH STANDARD



Ref No.

Std Unit

Longitudinal
Wires mm

Cross Wires mm

Pitch of wire

No. of sheet per ton

Mass Kg/m2

A393

Sheet

10

10

200 @ 200

15

6.16

A252

Sheet

8

8

200 @ 200

22

3.95

A193

Sheet

7

7

200 @ 200

29

3.02

A142

Sheet

6

6

200 @ 200

40

2.22

A98

Sheet

5

5

200 @ 200

57

1.54



DIN488 GERMAN STANDARD (SIZE:2150MMX5000MM)



Ref No.

Std Unit

Longitudinal
Wires mm

Cross Wires mm

Pitch of wire

Mass Kg

Mass Kg/m2

Q131

Sheet

5

5

150 @ 150

22.476

2.091

Q188

Sheet

6

6

150 @ 150

32.401

3.014

Q221

Sheet

6.5/5.0

6.5

150 @ 150

33.707

3.136

Q295

Sheet

7.5/5.5

7.5

150 @ 150

44.245

4.116

Q378

Sheet

8.5/6

8.5

150 @ 150

66.659

5.157



AS/NZS 4671:2001 Australia/New Zealand Standard (SIZE:6000X2400mm)



Ref No.

Std Unit

Longitudinal
Wires mm

Edge Wires mm

Cross Wires mm

Mass Kg

SL81 (F81)

Sheet

7.6 @ 100

7.60 @ 100

7.60 @ 100

105

SL102 (F102)

Sheet

9.5 @ 200

6.75 @ 100

9.50 @ 200

80

SL92 (F92)

Sheet

8.6 @ 200

6 @ 100

8.60 @ 200

66

SL82 (F82)

Sheet

7.6 @ 200

5.37 @ 100

7.60 @ 200

52

SL72 (F72)

Sheet

6.75 @ 200

4.77 @ 100

6.75 @ 200

41

SL62 (F62)

Sheet

6 @ 200

4.77 @ 100

6 @ 200

33

SL52 (F52)

Sheet

4.77 @ 200

4.77 @ 100

4.77 @ 200

21





Any size available as your request.

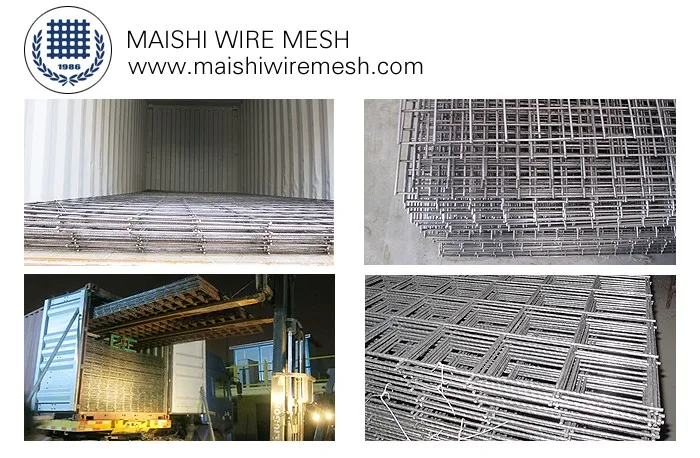

Packaging & Shipping








Calculated weight method:

longitudinal wire dia. x longitudinal wire dia. x 0.00617 x mesh length x numbers of wire in width direction+cross wire dia. x cross wire dia. x 0.00617 x mesh width x numbers of wire in length direction +edge wire dia. x edge wire dia. x 0.00617 x mesh length x 2=KG/sheet



Our products can meet below quality standard:

AS/NZS 4671:2001 Australia/New Zealand Standard

DIN488 GERMAN STANDARD

BS4483 BRITISH STANDARD





Tensile Strength

Yield Stength

Ratio

Elongation

Shear Force Average

Cold Bend

Rm≥550MPa

  Rp0.2≥500MPa

  Rm/Rp0.2≥1.03

  25%

  ≥0.5Rek.L•As

  D=3d

  Product:

  ocold-rolled ribbed mesh     ocold-drawn plain mesh  ostainless steel mesh

    We confirm that,all test sample are  from the same batch(grade,share,geometric,production process,delivery condition)and also passed the test conducted by our quality control department.
