stainless steel security mesh door/ window screen

  • >=50 Pieces
    $32.00
Material:
316
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
MAISHI
Model Number:
Security Mesh
Screen Netting Material:
Stainless Steel
Material:
marine grade 316
Usage:
security mesh screens
Color:
Black / Silver/gray
Mesh count:
8mesh, 9 mesh, 10mesh, 11mesh, 12mesh 14mesh, 18mesh
Wire dia.:
0.32mm-1.2mm
Wdith:
0.75m 0.9m 1.0m 1.2m 1.5m
Length:
2m 2.4m 3m 3.5m
Surface:
Epoxy Resin
MOQ:
50Pcs
Product name:
stainless steel security mesh door/ window screen
Supply Ability
Supply Ability:
2000 Piece/Pieces per Day stainless steel security mesh door/ window screen
Packaging & Delivery
Packaging Details
With a piece of water proof paper between two piece, then in wooden case(Fumigation Certificate Supplied)
Or as your request
stainless steel security mesh door/ window screen
Port
XINGANG
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 5 To be negotiated

stainless steel security mesh door/ window screen

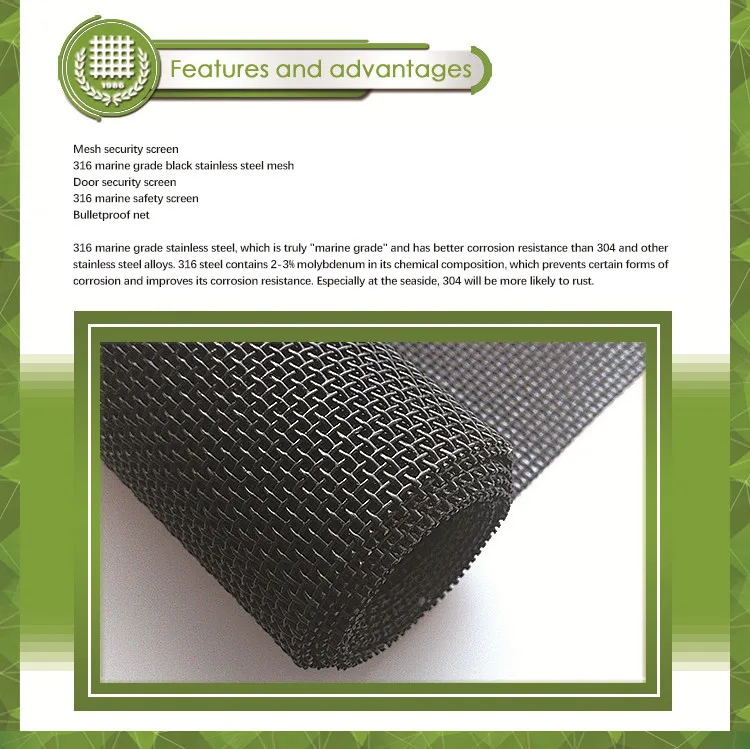

Maishi Manufacture Group supply marine grade Security Doors and window. Our marine grade security mesh can be used on window and doors to make your family far away from danger. And it is made from high tensile stainless steel, woven into a fine mesh, it is hard to cut and break. Our mesh has been passed a series Australia tests, you can believe our quality.Welcome to contact us if you have any inquiry for our mesh product.

[ Material ] Stainless steel 316

It is high tensile AISI316 stainless steel wire, tolerance(+/-0.01mm), tensile strength is more than 900Mpa (900N).

The holes are square and the wires are very strong (not sliding), screen surface is flattened after we weave the wires to mesh screen.


Characteristic of marine grade security mesh:
Safe: Not easy to cut and break pass AS5039-2008
Private live: No one can peep at room
Beautiful: Gorgeous surface
Durable: More than 10years Warranty pass AS2331.3.1-2001

Mesh Count: as follows

[ Specifications of security mesh

 Material

Mesh Size

 Hole Size

 Sheet Size

 General tensile 316 Marine grade stainless steel wire 8mesh×1.2mm 2.0mm

 Width×Length

750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm

 9mesh×1.0mm 1.8mm
 10mesh×0.8mm 1.8mm
 10mesh×0.9mm 1.6mm
 10mesh×1.0mm 1.5mm
 11mesh×0.8mm 1.5mm
 11mesh×0.9mm 1.4mm
 12mesh×0.7mm 1.4mm
 12mesh×0.8mm 1.3mm
 12mesh×0.9mm 1.2mm
 14mesh×0.5mm 1.3mm
 14mesh×0.55mm 1.2mm
 14mesh×0.6mm 1.2mm
 18mesh×0.32mm 1.0mm

 High tensile 316 Marine grade stainless steel wire 8mesh×1.2mm 2.0mm

 Width×Length

750mm×2000mm/2400mm/3000mm3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm

 8mesh×1.3mm 1.9mm
 9mesh×0.9mm 1.9mm
 9mesh×1.0mm 1.8mm
 10mesh×0.9mm 1.6mm
 10mesh×1.0mm 1.5mm
 11mesh×0.8mm 1.5mm
 11mesh×0.9mm 1.4mm

1.Sheet Size:Can be customized

2.Coating Color:Black/Gray/White

3.Packing:50 pcs per polywood box

 [ Features of marine grade security mesh]
 Excellent flact surface
 High tension,Equal aperture and dia
 Corrosion resistance,easy to install
 10 years not to corrode,face or bubble
 Black color filter 60% of UV rays


[ Maishi marine grade security mesh passes the below tests ]
 1) Knife Shear Test(AS5039-2008)
 2) Anti-Jemmy Test(AS509-2008)
 3) Pull Test(AS5039-2008)
 4) Durable more than 10 years(AS2331.31-2001)
 5) 3006 Hour Salt Spray Tests, 534 hours UV Test

[ Production Process of marine grade security screens]

You can clearly see our marine grade security mesh quality from following details:

Hole Size
Mesh Count
Smooth and beautiful surface
Tidy edge

[ Packing and Delivery]
Packing of marine grade security mesh: A piece of waterproof paper between two pieces of mesh,then with wooden cases.
Fumigation certificate supplied.
Delivery time: According to the final order. Usually within 15-20 days.
Payment: T/T, L/C at sight etc.

Factory show:
Hebei Maishi Wire Mesh Manufacture Co.,Ltd ,connected with production of stainless steel woven wire mesh and netting, since 1992, in China. The machinery and apparatus used in production process fully based on the high computer technology, so it is accepted as the only company capable of having TSE ( Chinese Standard Institution ) certificate and ISO 9001:2008, all of our produce according ISO9044:1999, JIS G 3555:2004, and ISO3310/BS410 etc.

We use imported precision slitting machine,can article points precision mesh, plain weave, twill weave.

Our mainly market of stainless steel wire mesh/colth in Germany, UK, Italy, Turkey, Korea, Thailand, Brazil, Mexico, Argentina, Egypt, Ghana, and other parts in the world. We have good reputation in the world with the quality and price. You are welcome to send by email or fax your inquiry for trial orders.

Maishi supply high quality which has smooth and bright surface,high hardness,high temperature resistance,non-deformation features.
